SKU: SUCFL.PL.212-36

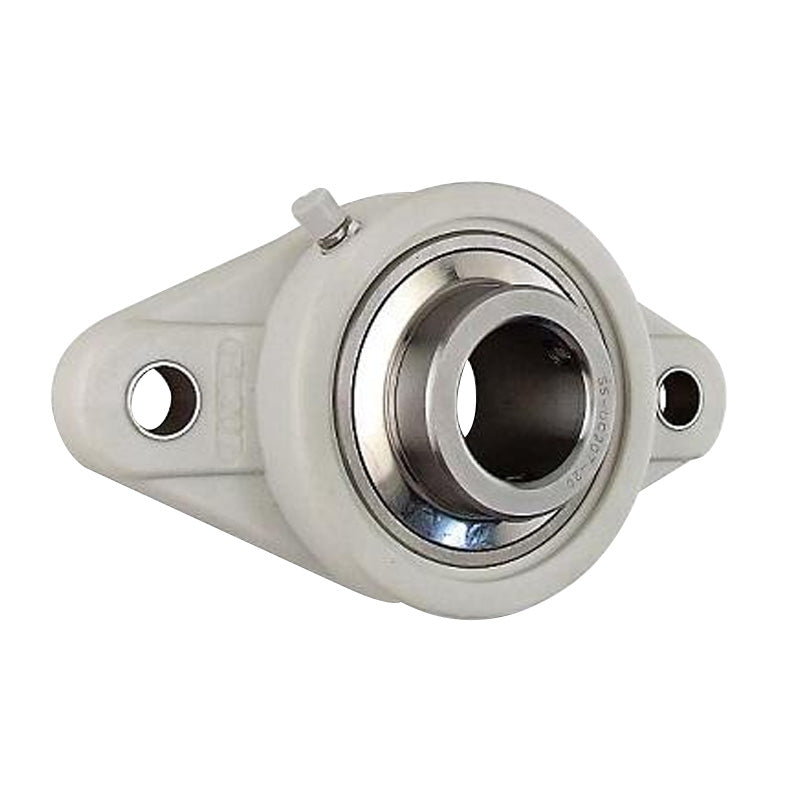

SUCFLPL212-36 Imperial Two Bolt Oval Thermo Plastic Flange Housing with 2-1/4 inch Bore Stainless Insert
SUCFLPL212-36 Imperial Two Bolt Oval Thermo Plastic Flange Housing with 2-1/4 inch Bore Stainless Insert
Equivalent to: PSFT2.1/4CR
Out of stock
Description
Description
|
SUCFLP or SFT Series 2 Bolt Oval Thermo-Plastic Housings: Bearing unit with a fully sealed stainless steel bearing insert fitted in the plastic housing which has pre-fitted anti crush stainless steel inserts in the bolt holes and also includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing, food safe and approved Note: These bearings will eventually corrode in a marine environment and it is recommended to completely cover with grease or similar protection where practical. This housing unit may be supplied in either green or white. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 57.15mm = 2.25 (2-1/4) inch
- Temperature Range:
- -35 to 102 deg C
- Style:
- SUCFL
- Bolt Hole Centres:
- 202mm
Technical
Technical
| d | 2-1/4 inch |
|---|---|
| a | 250mm |
| e | 202mm |
| i | 29mm |
| g | 18mm |
| L | 48mm |
| S | 23mm |
| b | 140mm |
| Z | 68.7mm |
| Bi | 65.1mm |
| n | 25.4mm |
| Bolt | 20mm |
| Weight | 4.1 kg |
| Dynamic load | 4100 kgf |
| Static load | 3150 kgf |
| Temperature Range | -35 to 102 deg C |
| Rec max speed | 2800 rpm |
