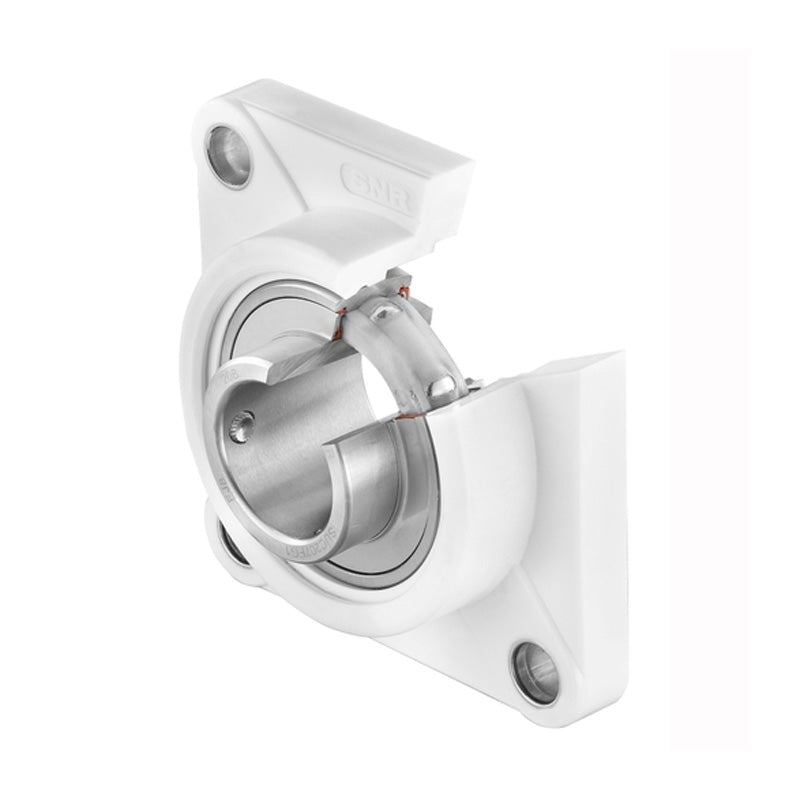

SNR SUCFPL204FG1 Metric Sentinel Thermoplastic Four Bolt Square Flanged Bracket Housing Unit with20mm Bore Insert - Allow 2-3 Days
SNR SUCFPL204FG1 Metric Sentinel Thermoplastic Four Bolt Square Flanged Bracket Housing Unit with20mm Bore Insert - Allow 2-3 Days
Regular price
$147.24
ex VAT
Regular price
Sale price
$147.24
ex VAT
In stock
Price Break
3+
$109.69
4+
$105.26
9+
$103.04
19+
$99.72
49+
$97.50
99+
$91.96
499+
$77.56
999+
$0.00
1999+
$0.00
2999+
$0.00
4999+
$0.00
Quantity
Couldn't load pickup availability
Share this product
Description
Description
SNR MUCFPL200 Sentinel Four Bolt Square Thermoplastic Housing Unit: This housing is designed for durability in demanding environments. With a sturdy thermoplastic housing and a stainless steel insert ball bearing secured by socket set screws, this unit ensures reliable performance. Its innovative seal with slinger protects against contaminants, while the LUBSOLID food-grade lubricant makes it ideal for food processing applications. Experience exceptional strength and reliability with this versatile housing unit.
Benefits: Durability, food-safe design, easy maintenance
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 20mm
- Temperature Range:
- -10 to 80 deg C
- Style:
- SUCFPL
- Colour:
- White
- Bolt Hole Centres:
- 63.5mm = 2.5 (2-1/2) inch
Technical
Technical
| Bore | 20mm |
|---|---|
| A - Housing height | 27.8mm |
| A1 - Housing foot height / flange height | 13.4mm |
| A2 - Total height from mounting surface | 36.3mm |
| B - Width of Inner Ring | 31mm |
| d - Shaft diameter | 20mm |
| e - Distance mounting surface to bearing centre | 18mm |
| J - Mounting holes distance | 63.5mm |
| L - Housing width / diameter | 86mm |
| N - Mounting hole dimension | 11mm |
| S - Distance front side/bearing centre | 12.7mm |
| C - Dynamic load rating | 12.8 kN |
| C0 - Static load rating | 6.6 kN |
| Operating temperature min. | -10 Deg C |
| Operating temperature max. | 80 Deg C |
| Mass | 0.29kg |
| Recommended tightening torque for set screw | 3.9 Nm |
