SKU: SUCFPL205FG1-SNR

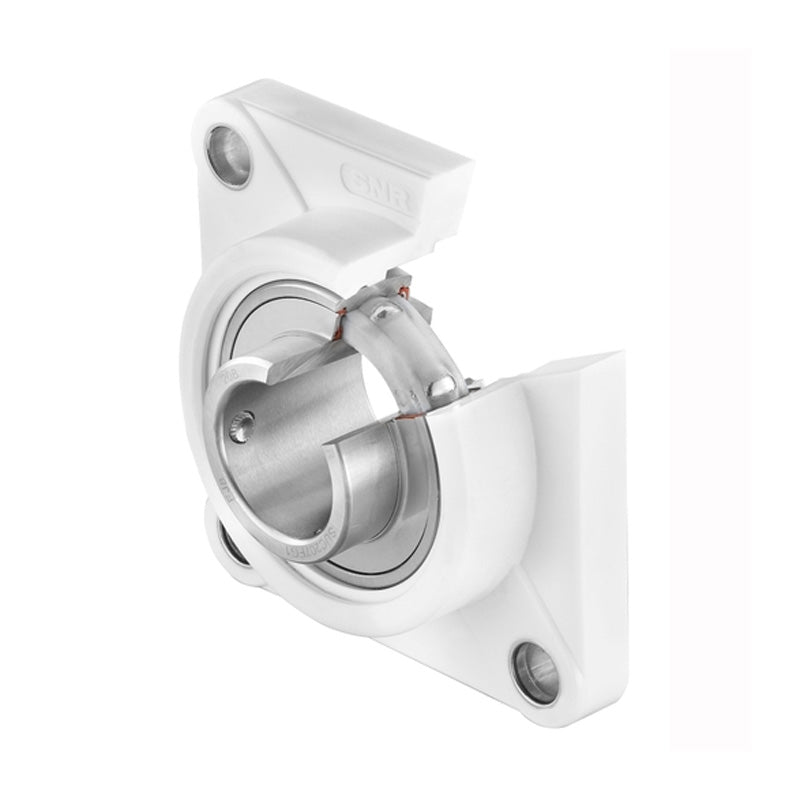

SNR SUCFPL205FG1 Metric Sentinel Thermoplastic Four Bolt Square Flanged Bracket Housing Unit with25mm Bore Insert - Allow 2-3 Days

SNR SUCFPL205FG1 Metric Sentinel Thermoplastic Four Bolt Square Flanged Bracket Housing Unit with25mm Bore Insert - Allow 2-3 Days
Regular price $176.64 ex VAT
Regular price Sale price $176.64 ex VAT
Sale Sold out

In stock

Price Break
3+ $131.59
4+ $126.27
9+ $123.62
19+ $119.63
49+ $116.97
99+ $110.32
499+ $93.04
999+ $0.00
1999+ $0.00
2999+ $0.00
4999+ $0.00
Quantity

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical

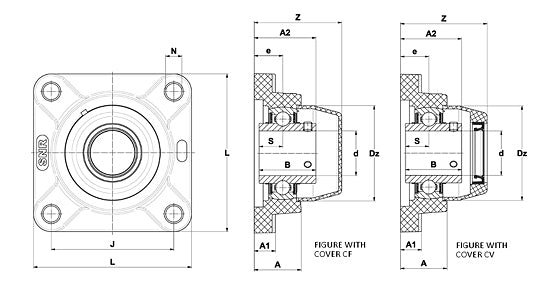

Bore 25mm
A - Housing height 28mm
A1 - Housing foot height / flange height 14.3mm
A2 - Total height from mounting surface 36.8mm
B - Width of Inner Ring 34.1mm
d - Shaft diameter 25mm
e - Distance mounting surface to bearing centre 17mm
J - Mounting holes distance 70mm
L - Housing width / diameter 95mm
N - Mounting hole dimension 11mm
S - Distance front side/bearing centre 14.3mm
C - Dynamic load rating 14 kN
C0 - Static load rating 7.8 kN
Operating temperature min. -10 Deg C
Operating temperature max. 80 Deg C
Mass 0.36kg
Recommended tightening torque for set screw 3.9 Nm
