SKU: SUCFPL206FG1-SNR

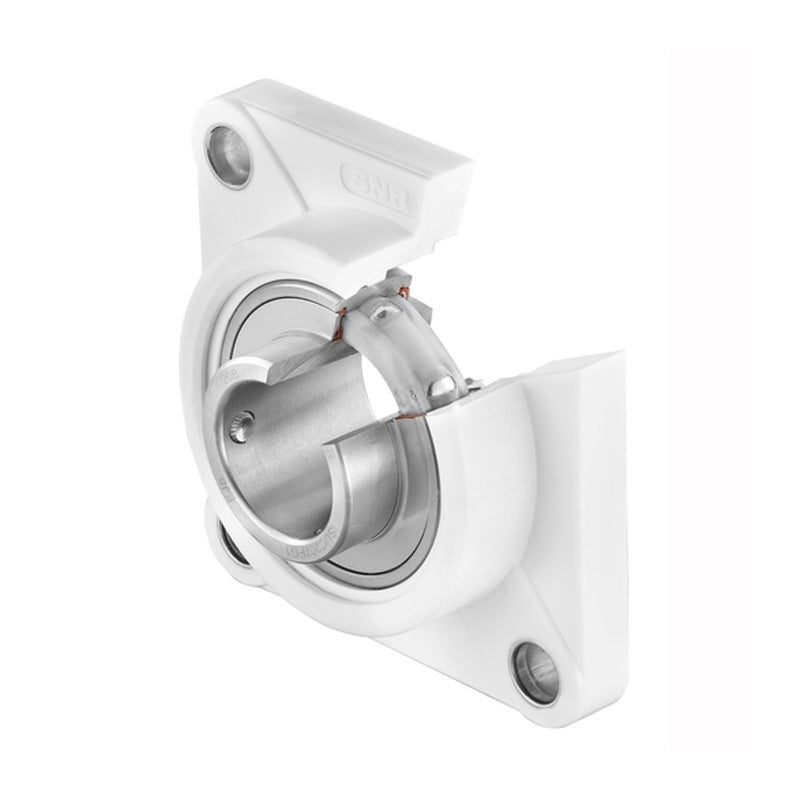

SNR SUCFPL206FG1 Metric Sentinel Thermoplastic Four Bolt Square Flanged Bracket Housing Unit with30mm Bore Insert - Allow 2-3 Days

SNR SUCFPL206FG1 Metric Sentinel Thermoplastic Four Bolt Square Flanged Bracket Housing Unit with30mm Bore Insert - Allow 2-3 Days
Regular price $206.05 ex VAT
Regular price Sale price $206.05 ex VAT
Sale Sold out

In stock

Price Break
3+ $153.50
4+ $147.30
9+ $144.20
19+ $139.55
49+ $136.44
99+ $128.69
499+ $108.54
999+ $0.00
1999+ $0.00
2999+ $0.00
4999+ $0.00
Quantity

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
Bore 30mm
A - Housing height 31.5mm
A1 - Housing foot height / flange height 14.3mm
A2 - Total height from mounting surface 41.4mm
B - Width of Inner Ring 38.1mm
d - Shaft diameter 30mm
e - Distance mounting surface to bearing centre 19.2mm
J - Mounting holes distance 83mm
L - Housing width / diameter 107mm
N - Mounting hole dimension 11mm
S - Distance front side/bearing centre 15.9mm
C - Dynamic load rating 19.4 kN
C0 - Static load rating 11.2 kN
Operating temperature min. -10 Deg C
Operating temperature max. 80 Deg C
Mass 0.48kg
Recommended tightening torque for set screw 3.9 Nm
