SKU: SUCFPL210FG1-SNR

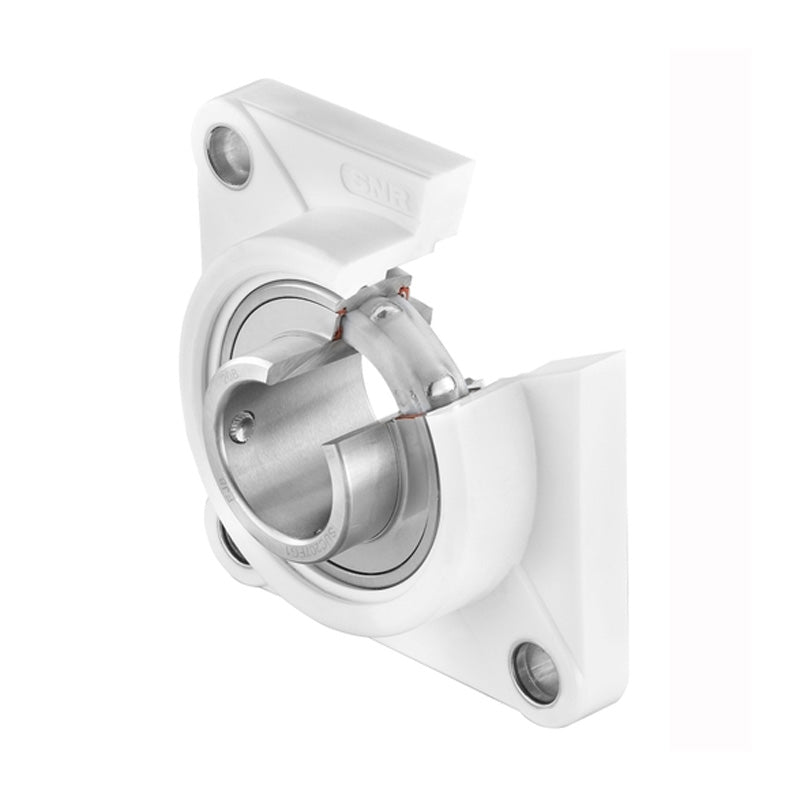

SNR SUCFPL210FG1 Metric Sentinel Thermoplastic Four Bolt Square Flanged Bracket Housing Unit with50mm Bore Insert - Allow 2-3 Days

SNR SUCFPL210FG1 Metric Sentinel Thermoplastic Four Bolt Square Flanged Bracket Housing Unit with50mm Bore Insert - Allow 2-3 Days
Regular price $353.49 ex VAT
Regular price Sale price $353.49 ex VAT
Sale Sold out

In stock

Price Break
3+ $263.34
4+ $252.70
9+ $247.38
19+ $239.40
49+ $234.08
99+ $220.78
499+ $186.20
999+ $0.00
1999+ $0.00
2999+ $0.00
4999+ $0.00
Quantity

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
Bore 50mm
A - Housing height 43mm
A1 - Housing foot height / flange height 21mm
A2 - Total height from mounting surface 57.6mm
B - Width of Inner Ring 51.6mm
d - Shaft diameter 50mm
e - Distance mounting surface to bearing centre 25mm
J - Mounting holes distance 111mm
L - Housing width / diameter 143mm
N - Mounting hole dimension 17mm
S - Distance front side/bearing centre 19mm
C - Dynamic load rating 35 kN
C0 - Static load rating 23.1 kN
Operating temperature min. -10 Deg C
Operating temperature max. 80 Deg C
Mass 2.02kg
Recommended tightening torque for set screw 18.7 Nm
