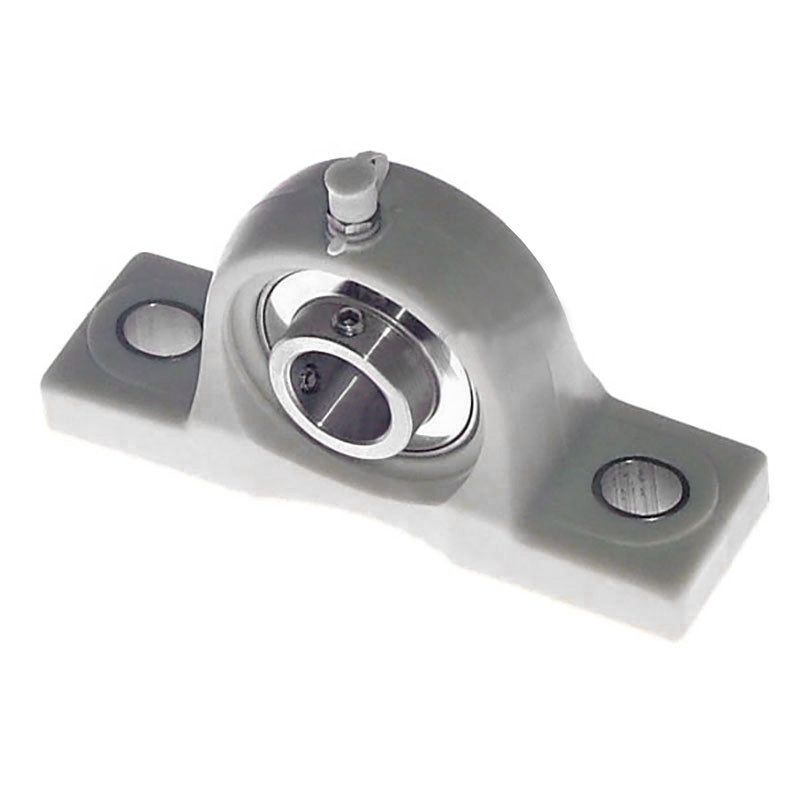

• SUCPPL202 Metric Thermo Plastic Two Bolt Pillow / Plummer Block Housing with 15mm Bore Stainless Insert
1 1

SKU: SUCP.PL.202

SUCPPL202 Metric Thermo Plastic Two Bolt Pillow / Plummer Block Housing with 15mm Bore Stainless Insert

SUCPPL202 Metric Thermo Plastic Two Bolt Pillow / Plummer Block Housing with 15mm Bore Stainless Insert
$26.33 ex VAT
$26.33 ex VAT
Sale Sold out

Equivalent to: PNP15CR

In stock

Price Break
3+ $17.64
4+ $16.65
9+ $16.45
19+ $16.25
49+ $16.05
99+ $15.85
499+ $14.86
999+ $14.67
1999+ $14.47
2999+ $14.27
4999+ $13.87

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
UCP or NP Series Thermo-Plastic Plummer / Pillow Housings: Supplied with a fully sealed stainless steel bearing insert fitted in the plastic housing which has pre-fitted anti crush stainless steel inserts in the bolt holes and also includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing, food safe and approved
Note: These bearings will eventually corrode in a marine environment and it is recommended to completely cover with grease or similar protection where practical. Colour may vary.
Brand / Quality:
EU Budget - Economy Quality
Inside Diameter:
15mm
Temperature Range:
-35 to 102 deg C
Style:
SUCP
Bolt Hole Centres:
96mm
Technical
d 15mm
h 30.2mm
a 127mm
e 96mm
b 38mm
s2 19mm
s1 13mm
g 15mm
w 62mm
B1 31mm
n 12.7mm
Bolt 10mm
Weight 0.63 kg
Dynamic load 760 kgf
Static load 450 kgf
Temperature Range -35 to 102 deg C
Rec max speed 8800 rpm
