• SUCPPL204-12 Imperial Thermo Plastic Two Bolt Pillow / Plummer Block Housing with 3/4 inch Bore Stainless Insert
1 1

SKU: SUCP.PL.204-12

SUCPPL204-12 Imperial Thermo Plastic Two Bolt Pillow / Plummer Block Housing with 3/4 inch Bore Stainless Insert

SUCPPL204-12 Imperial Thermo Plastic Two Bolt Pillow / Plummer Block Housing with 3/4 inch Bore Stainless Insert
$24.83 ex VAT
$24.83 ex VAT
Sale Sold out

Equivalent to: PNP3/4CR

In stock

Price Break
3+ $16.63
4+ $15.70
9+ $15.51
19+ $15.32
49+ $15.14
99+ $14.95
499+ $14.01
999+ $13.83
1999+ $13.64
2999+ $13.45
4999+ $13.08

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

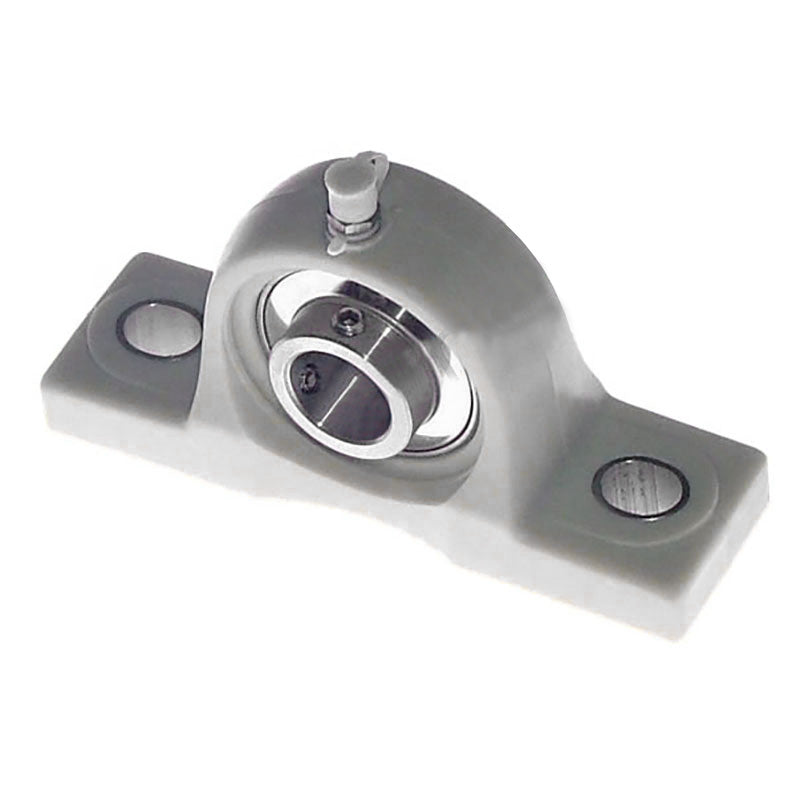

UCP or NP Series Thermo-Plastic Plummer / Pillow Housings: Supplied with a fully sealed stainless steel bearing insert fitted in the plastic housing which has pre-fitted anti crush stainless steel inserts in the bolt holes and also includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing, food safe and approved
Note: These bearings will eventually corrode in a marine environment and it is recommended to completely cover with grease or similar protection where practical. Colour may vary.
Brand / Quality:
EU Budget - Economy Quality
Inside Diameter:
19.05mm = 0.75 (3/4) inch
Temperature Range:
-35 to 102 deg C
Style:
SUCP
Bolt Hole Centres:
96mm
Technical
d 3/4 inch
h 33.3mm
a 127mm
e 96mm
b 38mm
s2 19mm
s1 13mm
g 15mm
w 62mm
B1 31mm
n 12.7mm
Bolt 10mm
Weight 0.63 kg
Dynamic load 1000 kgf
Static load 630 kgf
Temperature Range -35 to 102 deg C
Rec max speed 7450 rpm
