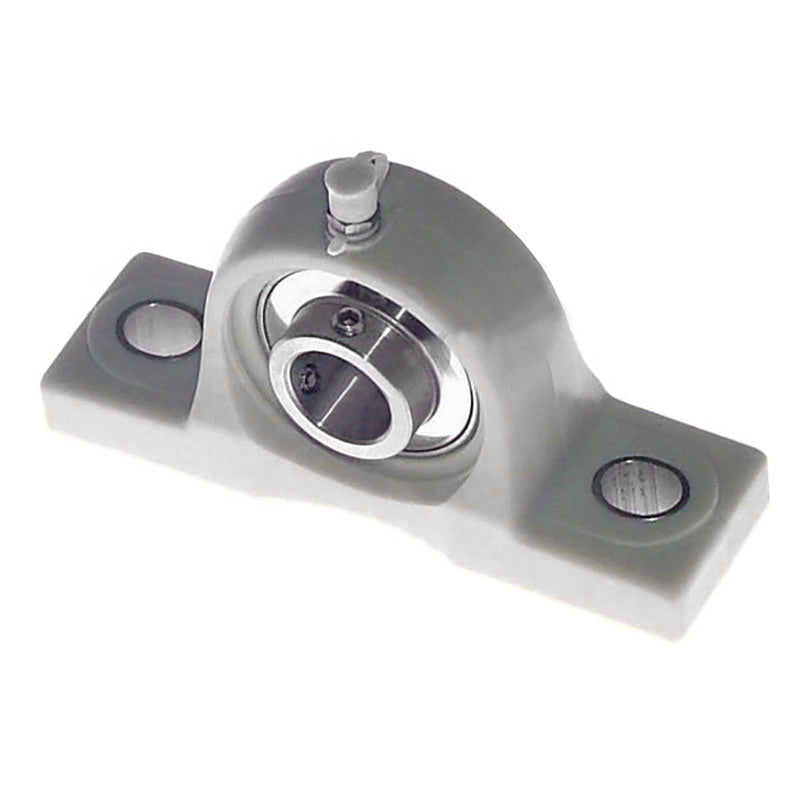

• SUCPPL205 Metric Thermo Plastic Two Bolt Pillow / Plummer Block Housing with 25mm Bore Stainless Insert
1 1

SKU: SUCP.PL.205

SUCPPL205 Metric Thermo Plastic Two Bolt Pillow / Plummer Block Housing with 25mm Bore Stainless Insert

SUCPPL205 Metric Thermo Plastic Two Bolt Pillow / Plummer Block Housing with 25mm Bore Stainless Insert
$51.46 ex VAT
$51.46 ex VAT
Sale Sold out

Equivalent to: PNP25CR

In stock

Price Break
3+ $34.47
4+ $32.53
9+ $32.15
19+ $31.76
49+ $31.37
99+ $30.98
499+ $29.05
999+ $28.66
1999+ $28.27
2999+ $27.89
4999+ $27.11

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
UCP or NP Series Thermo-Plastic Plummer / Pillow Housings: Supplied with a fully sealed stainless steel bearing insert fitted in the plastic housing which has pre-fitted anti crush stainless steel inserts in the bolt holes and also includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing, food safe and approved
Note: These bearings will eventually corrode in a marine environment and it is recommended to completely cover with grease or similar protection where practical. Colour may vary.
Brand / Quality:
EU Budget - Economy Quality
Inside Diameter:
25mm
Temperature Range:
-35 to 102 deg C
Style:
SUCP
Bolt Hole Centres:
105mm
Technical
d 25mm
h 36.5mm
a 140mm
e 105mm
b 38mm
s2 19mm
s1 13mm
g 16mm
w 70mm
B1 34mm
n 14.3mm
Bolt 10mm
Weight 0.79 kg
Dynamic load 1100 kgf
Static load 710 kgf
Temperature Range -35 to 102 deg C
Rec max speed 6250 rpm
