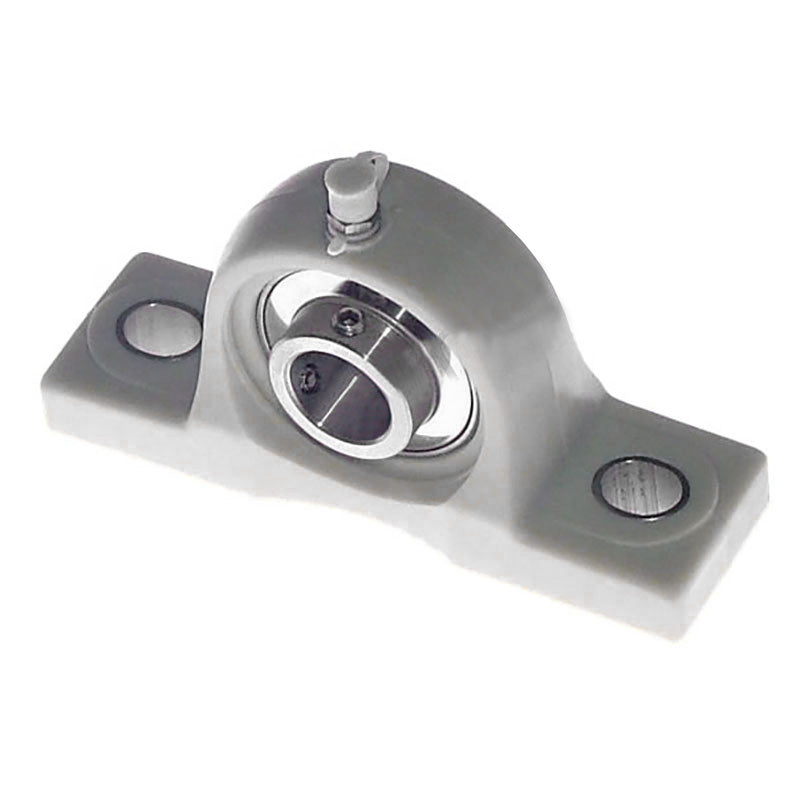

• SUCPPL205-16 Imperial Thermo Plastic Two Bolt Pillow / Plummer Block Housing with 1 inch Bore Stainless Insert
1 1

SKU: SUCP.PL.205-16

SUCPPL205-16 Imperial Thermo Plastic Two Bolt Pillow / Plummer Block Housing with 1 inch Bore Stainless Insert

SUCPPL205-16 Imperial Thermo Plastic Two Bolt Pillow / Plummer Block Housing with 1 inch Bore Stainless Insert
$48.86 ex VAT
$48.86 ex VAT
Sale Sold out

Equivalent to: PNP1CR

In stock

Price Break
3+ $32.73
4+ $30.89
9+ $30.52
19+ $30.15
49+ $29.78
99+ $29.42
499+ $27.58
999+ $27.21
1999+ $26.84
2999+ $26.48
4999+ $25.74

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
EU Budget - Economy Quality
Inside Diameter:
25.4mm = 1 inch
Temperature Range:
-35 to 102 deg C
Style:
SUCP
Bolt Hole Centres:
105mm
Technical
d 1 inch
h 36.5mm
a 140mm
e 105mm
b 38mm
s2 19mm
s1 13mm
g 16mm
w 70mm
B1 34mm
n 14.3mm
Bolt 10mm
Weight 0.79 kg
Dynamic load 1100 kgf
Static load 710 kgf
Temperature Range -35 to 102 deg C
Rec max speed 6250 rpm
