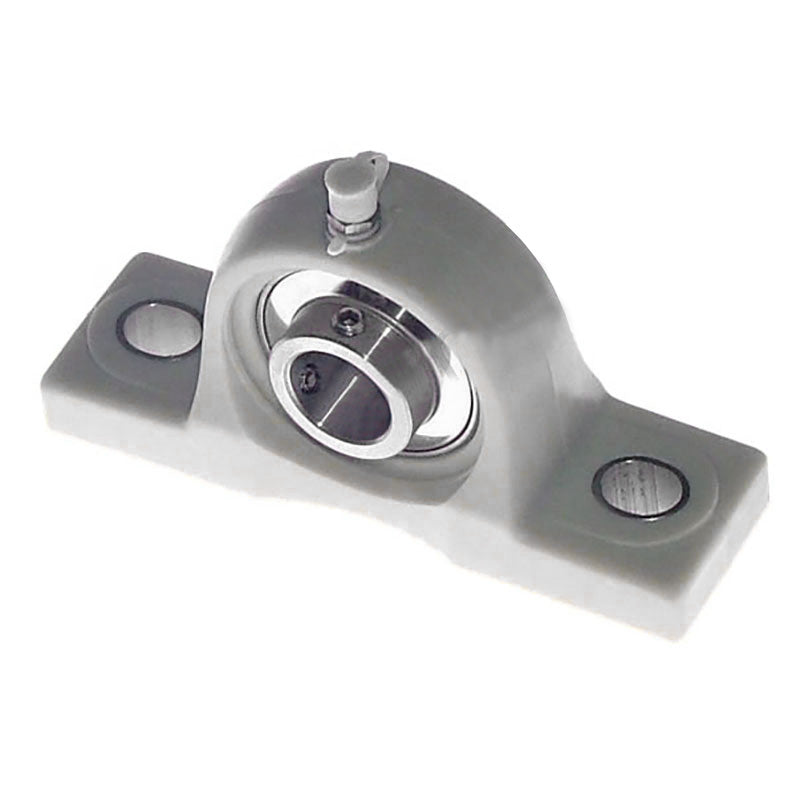

• SUCPPL206 Metric Thermo Plastic Two Bolt Pillow / Plummer Block Housing with 30mm Bore Stainless Insert
1 1

SKU: SUCP.PL.206

SUCPPL206 Metric Thermo Plastic Two Bolt Pillow / Plummer Block Housing with 30mm Bore Stainless Insert

SUCPPL206 Metric Thermo Plastic Two Bolt Pillow / Plummer Block Housing with 30mm Bore Stainless Insert
$67.05 ex VAT
$67.05 ex VAT
Sale Sold out

Equivalent to: PNP30CR

In stock

Price Break
3+ $44.91
4+ $42.39
9+ $41.88
19+ $41.38
49+ $40.87
99+ $40.37
499+ $37.84
999+ $37.34
1999+ $36.84
2999+ $36.33
4999+ $35.32

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
EU Budget - Economy Quality
Inside Diameter:
30mm
Temperature Range:
-35 to 102 deg C
Style:
SUCP
Bolt Hole Centres:
121mm
Technical
d 30mm
h 42.9mm
a 165mm
e 121mm
b 48mm
s2 21mm
s1 17mm
g 18mm
w 83mm
B1 38.1mm
n 15.9mm
Bolt 14mm
Weight 0.79 kg
Dynamic load 1520 kgf
Static load 1020 kgf
Temperature Range -35 to 102 deg C
Rec max speed 5300 rpm
