• SUCPPL207 Metric Thermo Plastic Two Bolt Pillow / Plummer Block Housing with 35mm Bore Stainless Insert
1 1

SKU: SUCP.PL.207

SUCPPL207 Metric Thermo Plastic Two Bolt Pillow / Plummer Block Housing with 35mm Bore Stainless Insert

SUCPPL207 Metric Thermo Plastic Two Bolt Pillow / Plummer Block Housing with 35mm Bore Stainless Insert
$88.46 ex VAT
$88.46 ex VAT
Sale Sold out

Equivalent to: PNP35CR

In stock

Price Break
3+ $59.25
4+ $55.92
9+ $55.26
19+ $54.59
49+ $53.93
99+ $53.26
499+ $49.93
999+ $49.27
1999+ $48.60
2999+ $47.93
4999+ $46.60

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

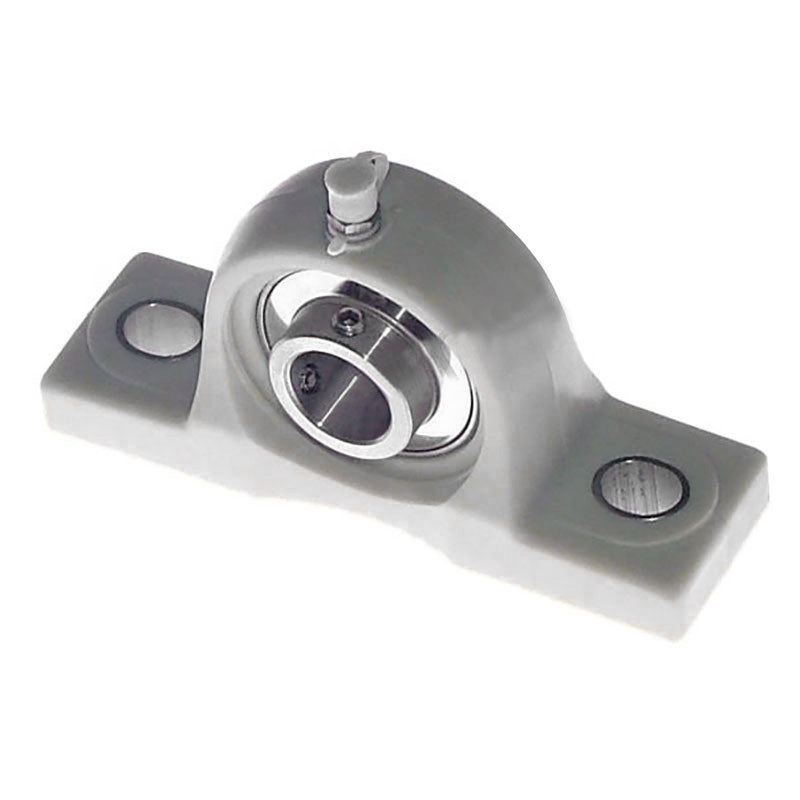

UCP or NP Series Thermo-Plastic Plummer / Pillow Housings: Supplied with a fully sealed stainless steel bearing insert fitted in the plastic housing which has pre-fitted anti crush stainless steel inserts in the bolt holes and also includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing, food safe and approved
Note: These bearings will eventually corrode in a marine environment and it is recommended to completely cover with grease or similar protection where practical. Colour may vary.
Brand / Quality:
EU Budget - Economy Quality
Inside Diameter:
35mm
Temperature Range:
-35 to 102 deg C
Style:
SUCP
Bolt Hole Centres:
126mm
Technical
d 35mm
h 47.6mm
a 167mm
e 126mm
b 48mm
s2 21mm
s1 17mm
g 19mm
w 92mm
B1 42.9mm
n 17.5mm
Bolt 14mm
Weight 1.6 kg
Dynamic load 2010 kgf
Static load 1390 kgf
Temperature Range -35 to 102 deg C
Rec max speed 4500 rpm
