SKU: SUCP.PL.207-21

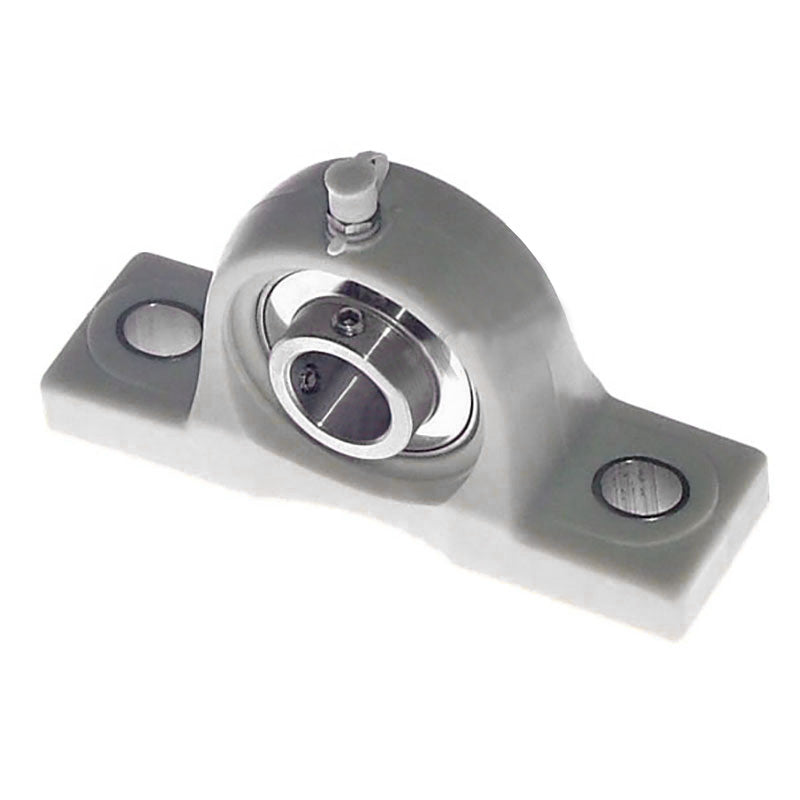

SUCPPL207-21 Imperial Thermo Plastic Two Bolt Pillow / Plummer Block Housing with 1-5/16 inch Bore Stainless Insert
SUCPPL207-21 Imperial Thermo Plastic Two Bolt Pillow / Plummer Block Housing with 1-5/16 inch Bore Stainless Insert
Equivalent to: PNP1.5/16CR
Out of stock
Description
Description
|
UCP or NP Series Thermo-Plastic Plummer / Pillow Housings: Supplied with a fully sealed stainless steel bearing insert fitted in the plastic housing which has pre-fitted anti crush stainless steel inserts in the bolt holes and also includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing, food safe and approved Note: These bearings will eventually corrode in a marine environment and it is recommended to completely cover with grease or similar protection where practical. Colour may vary. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 33.33mm = 1.312 (1-5/16) inch
- Temperature Range:
- -35 to 102 deg C
- Style:
- SUCP
- Bolt Hole Centres:
- 126mm
Technical
Technical
| d | 1-5/16 inch |
|---|---|
| h | 47.6mm |
| a | 167mm |
| e | 126mm |
| b | 48mm |
| s2 | 21mm |
| s1 | 17mm |
| g | 19mm |
| w | 92mm |
| B1 | 42.9mm |
| n | 17.5mm |
| Bolt | 14mm |
| Weight | 1.6 kg |
| Dynamic load | 2010 kgf |
| Static load | 1390 kgf |
| Temperature Range | -35 to 102 deg C |
