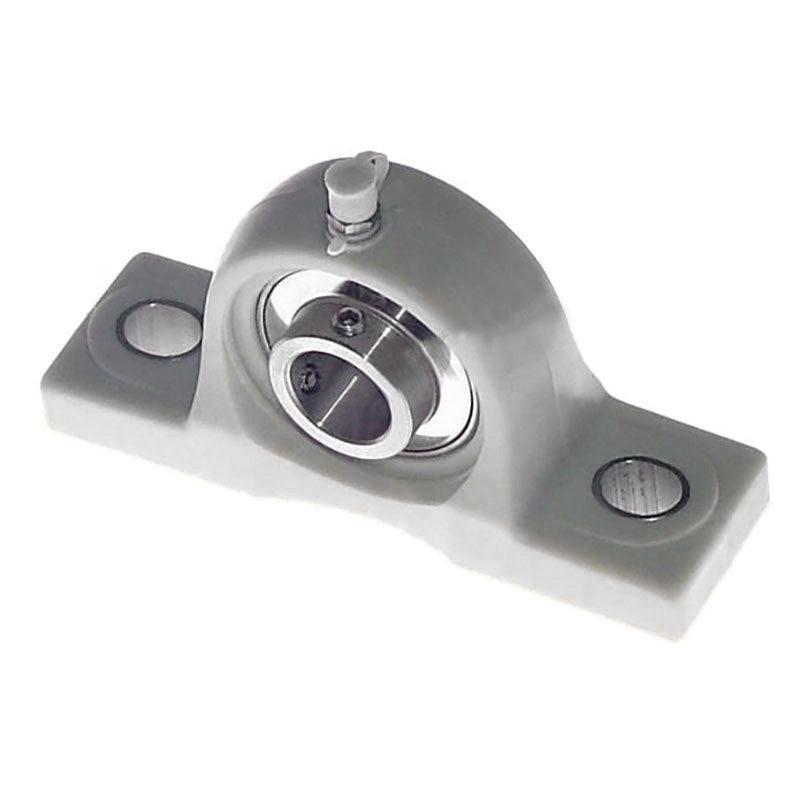

• SUCPPL208 Metric Thermo Plastic Two Bolt Pillow / Plummer Block Housing with 40mm Bore Stainless Insert
1 1

SKU: SUCP.PL.208

SUCPPL208 Metric Thermo Plastic Two Bolt Pillow / Plummer Block Housing with 40mm Bore Stainless Insert

SUCPPL208 Metric Thermo Plastic Two Bolt Pillow / Plummer Block Housing with 40mm Bore Stainless Insert
$113.47 ex VAT
$113.47 ex VAT
Sale Sold out

Equivalent to: PNP40CR

In stock

Price Break
3+ $76.01
4+ $71.74
9+ $70.89
19+ $70.03
49+ $69.18
99+ $68.32
499+ $64.05
999+ $63.20
1999+ $62.35
2999+ $61.49
4999+ $59.78

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
EU Budget - Economy Quality
Inside Diameter:
40mm
Temperature Range:
-35 to 102 deg C
Style:
SUCP
Bolt Hole Centres:
136mm
Technical
d 40mm
h 49.2mm
a 184mm
e 136mm
b 54mm
s2 21mm
s1 17mm
g 19mm
w 98mm
B1 49.2mm
n 19mm
Bolt 14mm
Weight 2 kg
Dynamic load 2560 kgf
Static load 1810 kgf
Temperature Range -35 to 102 deg C
Rec max speed 4000 rpm
