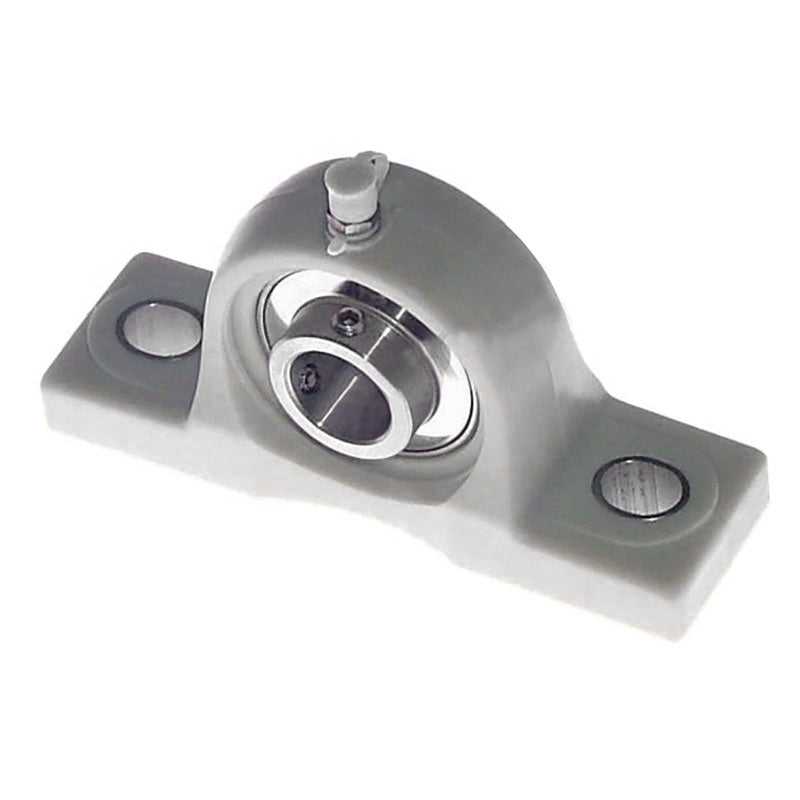

• SUCPPL208-24 Imperial Thermo Plastic Two Bolt Pillow / Plummer Block Housing with 1-1/2 inch Bore Stainless Insert
1 1

SKU: SUCP.PL.208-24

SUCPPL208-24 Imperial Thermo Plastic Two Bolt Pillow / Plummer Block Housing with 1-1/2 inch Bore Stainless Insert

SUCPPL208-24 Imperial Thermo Plastic Two Bolt Pillow / Plummer Block Housing with 1-1/2 inch Bore Stainless Insert
$56.08 ex VAT
$56.08 ex VAT
Sale Sold out

Equivalent to: PNP1.1/2CR

In stock

Price Break
3+ $37.56
4+ $35.45
9+ $35.03
19+ $34.61
49+ $34.19
99+ $33.77
499+ $31.66
999+ $31.23
1999+ $30.81
2999+ $30.39
4999+ $29.55

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
EU Budget - Economy Quality
Inside Diameter:
38.1mm = 1.5 (1-1/2) inch
Temperature Range:
-35 to 102 deg C
Style:
SUCP
Bolt Hole Centres:
136mm
Technical
d 1-1/2 inch
h 49.2mm
a 184mm
e 136mm
b 54mm
s2 21mm
s1 17mm
g 19mm
w 98mm
B1 49.2mm
n 19mm
Bolt 14mm
Weight 2 kg
Dynamic load 2560 kgf
Static load 1810 kgf
Temperature Range -35 to 102 deg C
Rec max speed 4000 rpm
