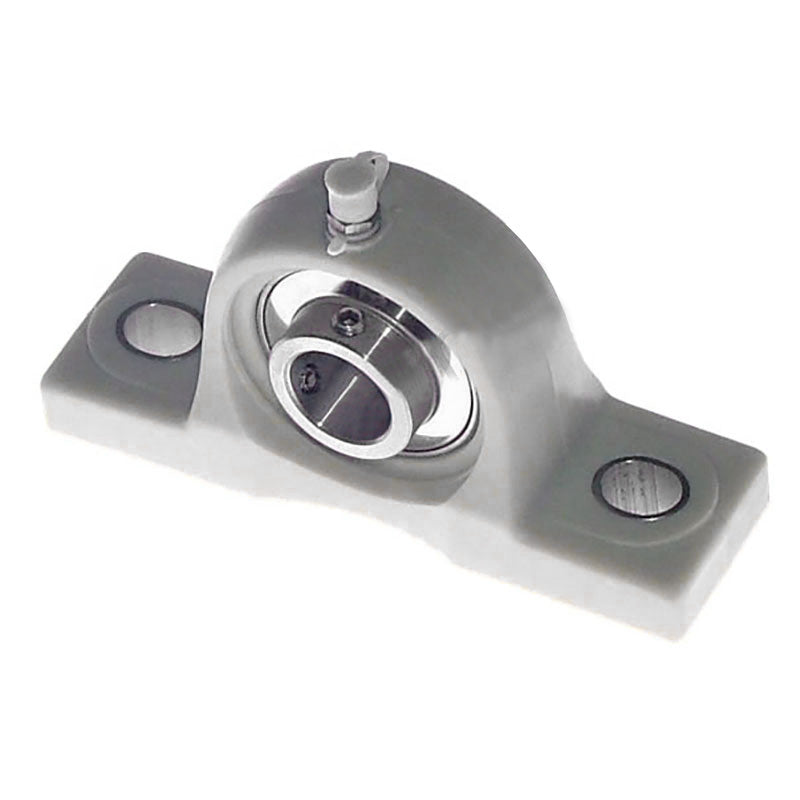

• SUCPPL209 Metric Thermo Plastic Two Bolt Pillow / Plummer Block Housing with 45mm Bore Stainless Insert
1 1

SKU: SUCP.PL.209

SUCPPL209 Metric Thermo Plastic Two Bolt Pillow / Plummer Block Housing with 45mm Bore Stainless Insert

SUCPPL209 Metric Thermo Plastic Two Bolt Pillow / Plummer Block Housing with 45mm Bore Stainless Insert
$124.23 ex VAT
$124.23 ex VAT
Sale Sold out

Equivalent to: PNP45CR

In stock

Price Break
3+ $83.22
4+ $78.54
9+ $77.61
19+ $76.67
49+ $75.74
99+ $74.80
499+ $70.13
999+ $69.19
1999+ $68.26
2999+ $67.32
4999+ $65.45

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
UCP or NP Series Thermo-Plastic Plummer / Pillow Housings: Supplied with a fully sealed stainless steel bearing insert fitted in the plastic housing which has pre-fitted anti crush stainless steel inserts in the bolt holes and also includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing, food safe and approved
Note: These bearings will eventually corrode in a marine environment and it is recommended to completely cover with grease or similar protection where practical. Colour may vary.
Brand / Quality:
EU Budget - Economy Quality
Inside Diameter:
45mm
Temperature Range:
-35 to 102 deg C
Style:
SUCP
Bolt Hole Centres:
146mm
Technical
d 45mm
h 54mm
a 190mm
e 146mm
b 54mm
s2 21mm
s1 17mm
g 20mm
w 106mm
B1 49.2mm
n 19mm
Bolt 14mm
Weight 2.2 kg
Dynamic load 2560 kgf
Static load 1810 kgf
Temperature Range -35 to 102 deg C
Rec max speed 3700 rpm
