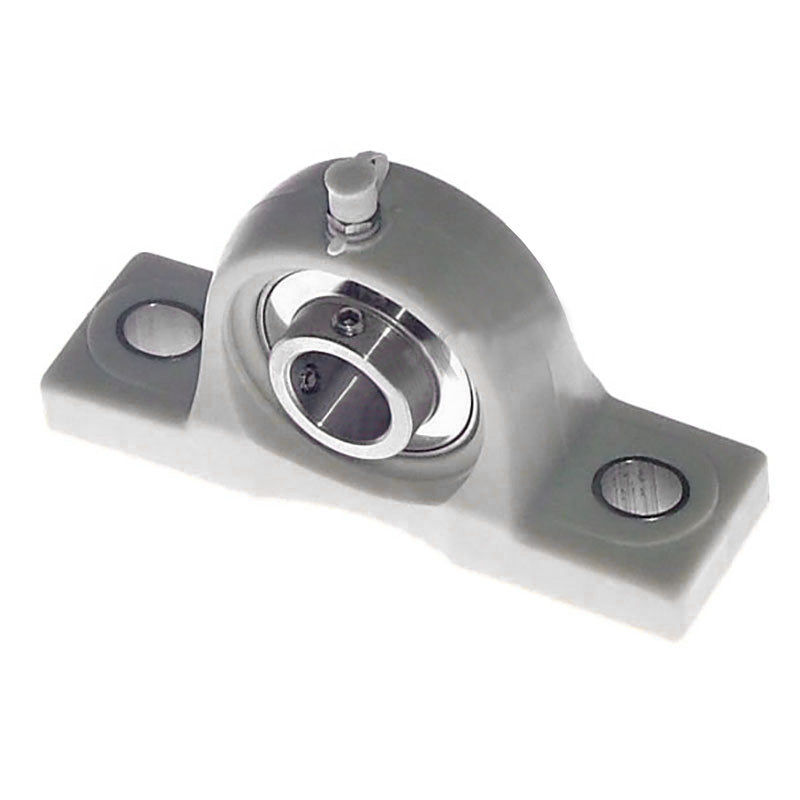

• SUCPPL212 Metric Thermo Plastic Two Bolt Pillow / Plummer Block Housing with 60mm Bore Stainless Insert
1 1

SKU: SUCP.PL.212

SUCPPL212 Metric Thermo Plastic Two Bolt Pillow / Plummer Block Housing with 60mm Bore Stainless Insert

SUCPPL212 Metric Thermo Plastic Two Bolt Pillow / Plummer Block Housing with 60mm Bore Stainless Insert
$179.24 ex VAT
$179.24 ex VAT
Sale Sold out

Equivalent to: PNP60CR

In stock

Price Break
3+ $120.06
4+ $113.31
9+ $111.96
19+ $110.61
49+ $109.27
99+ $107.92
499+ $101.17
999+ $99.82
1999+ $98.47
2999+ $97.12
4999+ $94.43

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
EU Budget - Economy Quality
Inside Diameter:
60mm
Temperature Range:
-35 to 102 deg C
Style:
SUCP
Bolt Hole Centres:
184mm
Technical
d 60mm
h 69.8mm
a 241mm
e 184mm
b 70mm
s2 25mm
s1 20mm
g 25mm
w 137mm
B1 65.1mm
n 25.4mm
Bolt 16mm
Weight 4.8 kg
Dynamic load 4100 kgf
Static load 3150 kgf
Temperature Range -35 to 102 deg C
Rec max speed 2800 rpm
