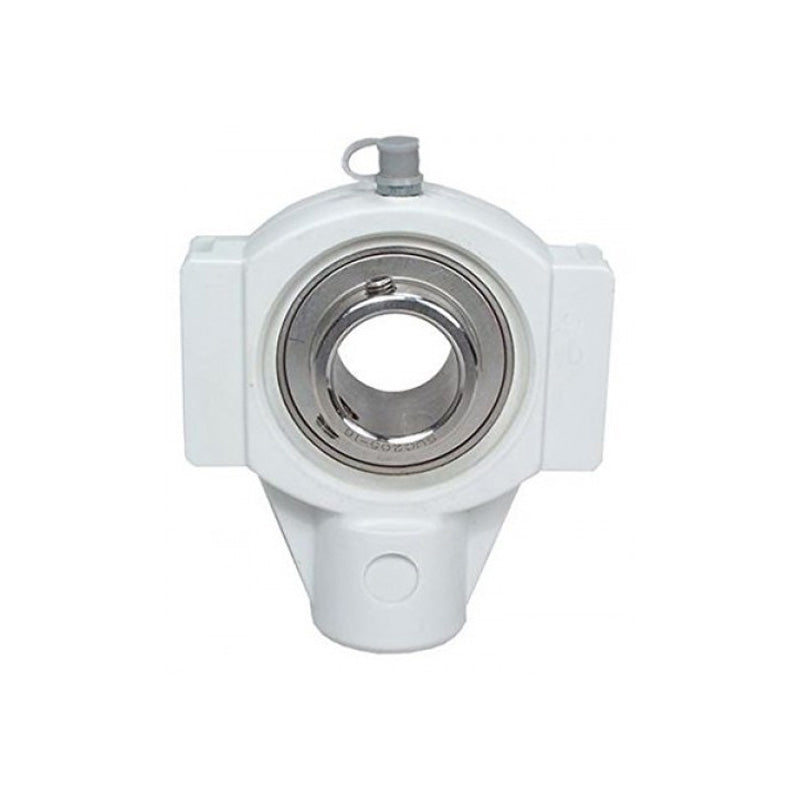

• SUCTPL205 Metric Thermo Plastic Take Up Unit Housing with 25mm Bore Stainless Insert
1 1

SKU: SUCT.PL.205

SUCTPL205 Metric Thermo Plastic Take Up Unit Housing with 25mm Bore Stainless Insert

SUCTPL205 Metric Thermo Plastic Take Up Unit Housing with 25mm Bore Stainless Insert
$50.36 ex VAT
$50.36 ex VAT
Sale Sold out

Equivalent to: PST25CR

In stock

Price Break
3+ $33.73
4+ $31.84
9+ $31.46
19+ $31.08
49+ $30.70
99+ $30.32
499+ $28.43
999+ $28.05
1999+ $27.67
2999+ $27.29
4999+ $26.53

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
SUCTPL or ST Series Thermo-Plastic Take up Units: Supplied with a fully sealed stainless steel bearing insert fitted in the plastic housing which has pre-fitted anti crush stainless steel inserts in the bolt holes and also includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing, food safe and approved
Note: These bearings will eventually corrode in a marine environment and it is recommended to completely cover with grease or similar protection where practical. Colour may vary.
Brand / Quality:
EU Budget - Economy Quality
Inside Diameter:
25mm
Temperature Range:
-35 to 102 deg C
Style:
SUCT
Technical
d 25mm
a 99mm
c 27.5mm
d 12mm
h 64mm
m 76mm
s M16
t 36mm
v 88mm
w 47mm
B 34.1mm
n 14.3mm
Weight 0.83 kg
Dynamic load 1100 kgf
Static load 710 kgf
Temperature Range -35 to 102 deg C
Rec max speed 6250 rpm
