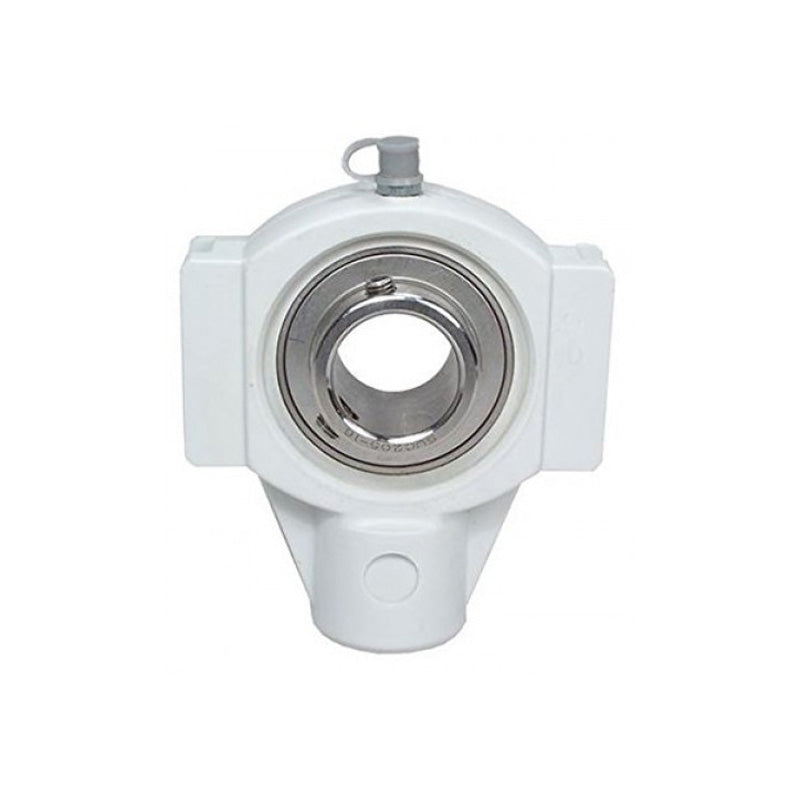

• SUCTPL210 Metric Thermo Plastic Take Up Unit Housing with 50mm Bore Stainless Insert
1 1

SKU: SUCT.PL.210

SUCTPL210 Metric Thermo Plastic Take Up Unit Housing with 50mm Bore Stainless Insert

SUCTPL210 Metric Thermo Plastic Take Up Unit Housing with 50mm Bore Stainless Insert
$145.89 ex VAT
$145.89 ex VAT
Sale Sold out

Equivalent to: PST50CR

In stock

Price Break
3+ $97.72
4+ $92.23
9+ $91.14
19+ $90.04
49+ $88.94
99+ $87.84
499+ $82.35
999+ $81.25
1999+ $80.16
2999+ $79.06
4999+ $76.86

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
SUCTPL or ST Series Thermo-Plastic Take up Units: Supplied with a fully sealed stainless steel bearing insert fitted in the plastic housing which has pre-fitted anti crush stainless steel inserts in the bolt holes and also includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing, food safe and approved
Note: These bearings will eventually corrode in a marine environment and it is recommended to completely cover with grease or similar protection where practical. Colour may vary.
Brand / Quality:
EU Budget - Economy Quality
Inside Diameter:
50mm
Temperature Range:
-35 to 102 deg C
Style:
SUCT
Technical
d 50mm
a 149mm
c 40mm
d 16mm
h 90mm
m 102mm
s M20
t 50mm
v 117mm
w 85mm
B 51.6mm
n 19mm
Weight 2.5 kg
Dynamic load 2750 kgf
Static load 2020 kgf
Temperature Range -35 to 102 deg C
Rec max speed 3400 rpm
