SKU: SUCT.PL.212

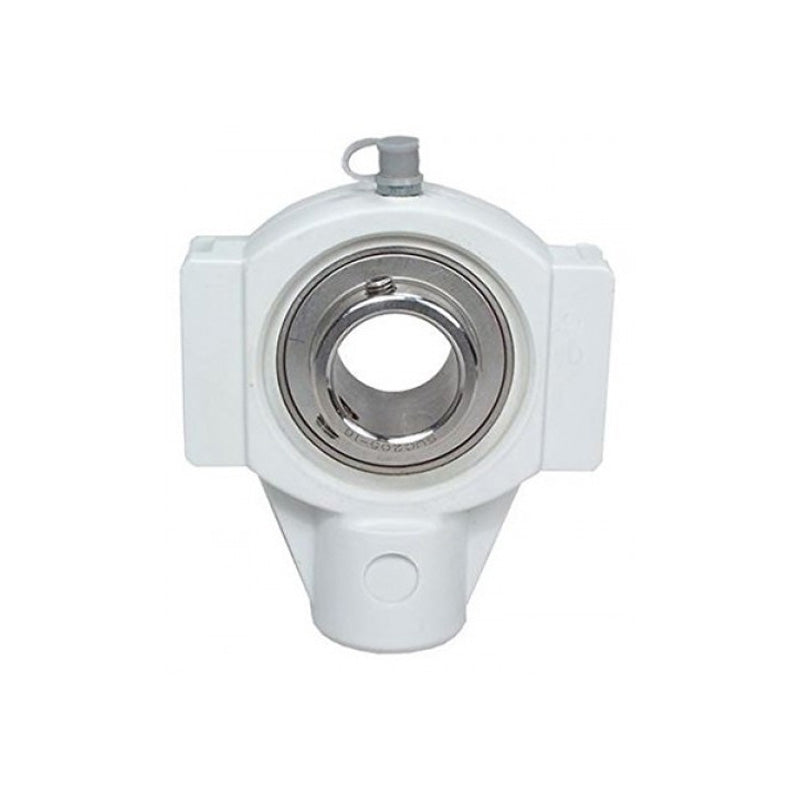

SUCTPL212 Metric Thermo Plastic Take Up Unit Housing with 60mm Bore Stainless Insert
SUCTPL212 Metric Thermo Plastic Take Up Unit Housing with 60mm Bore Stainless Insert
Equivalent to: PST60CR
Out of stock
Share this product
Description
Description
|
SUCTPL or ST Series Thermo-Plastic Take up Units: Supplied with a fully sealed stainless steel bearing insert fitted in the plastic housing which has pre-fitted anti crush stainless steel inserts in the bolt holes and also includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing, food safe and approved Note: These bearings will eventually corrode in a marine environment and it is recommended to completely cover with grease or similar protection where practical. Colour may vary. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 60mm
- Temperature Range:
- -35 to 102 deg C
- Style:
- SUCT
Technical
Technical
| d | 60mm |
|---|---|
| a | 194mm |
| c | 42mm |
| d | 22mm |
| h | 119mm |
| m | 130mm |
| s | M20 |
| t | 64mm |
| v | 146mm |
| w | 102mm |
| B | 65.1mm |
| n | 25.4mm |
| Weight | 5.0 kg |
| Dynamic load | 4100 kgf |
| Static load | 3150 kgf |
| Temperature Range | -35 to 102 deg C |
| Rec max speed | 2800 rpm |
