SKU: SUCT.PL.215

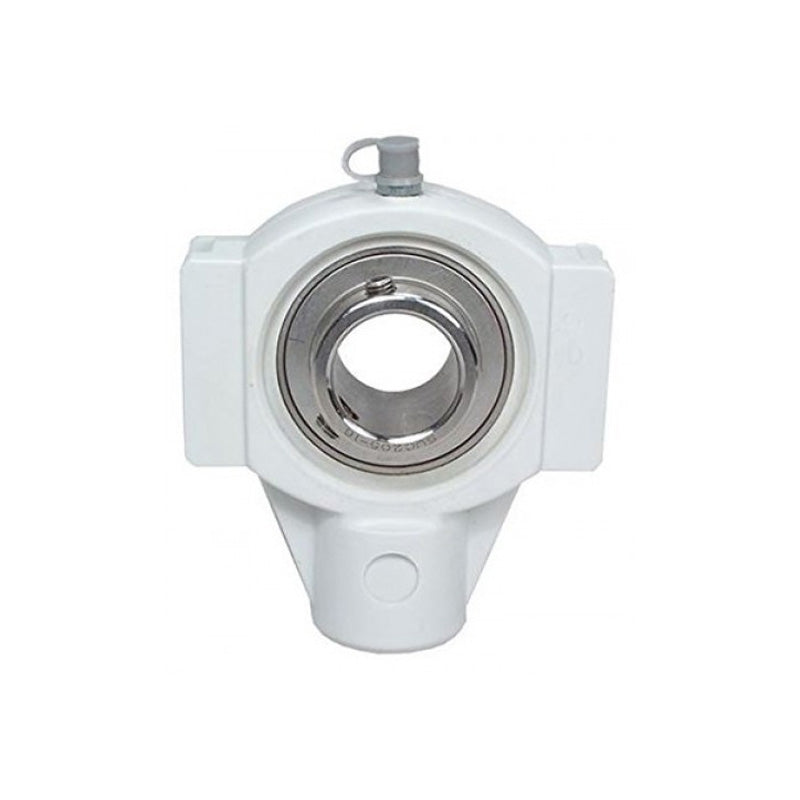

SUCTPL215 Metric Thermo Plastic Take Up Unit Housing with 75mm Bore Stainless Insert
SUCTPL215 Metric Thermo Plastic Take Up Unit Housing with 75mm Bore Stainless Insert
Out of stock
Description
Description
|
SUCTPL or ST Series Thermo-Plastic Take up Units: Supplied with a fully sealed stainless steel bearing insert fitted in the plastic housing which has pre-fitted anti crush stainless steel inserts in the bolt holes and also includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing, food safe and approved Note: These bearings will eventually corrode in a marine environment and it is recommended to completely cover with grease or similar protection where practical. Colour may vary. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 75mm
- Temperature Range:
- -35 to 102 deg C
- Style:
- SUCT
Technical
Technical
| d | 75mm |
|---|---|
| a | 32mm |
| c | 21mm |
| d | 111mm |
| h | 70mm |
| m | 41mm |
| s | 121mm |
| t | 26mm |
| v | 151mm |
| w | 167mm |
| B | 232mm |
| n | 70mm |
| Weight | 7.4 kg |
| Dynamic load | 5190 kgf |
| Static load | 4190 kgf |
| Temperature Range | -35 to 102 deg C |
