SKU: SW105-M2400

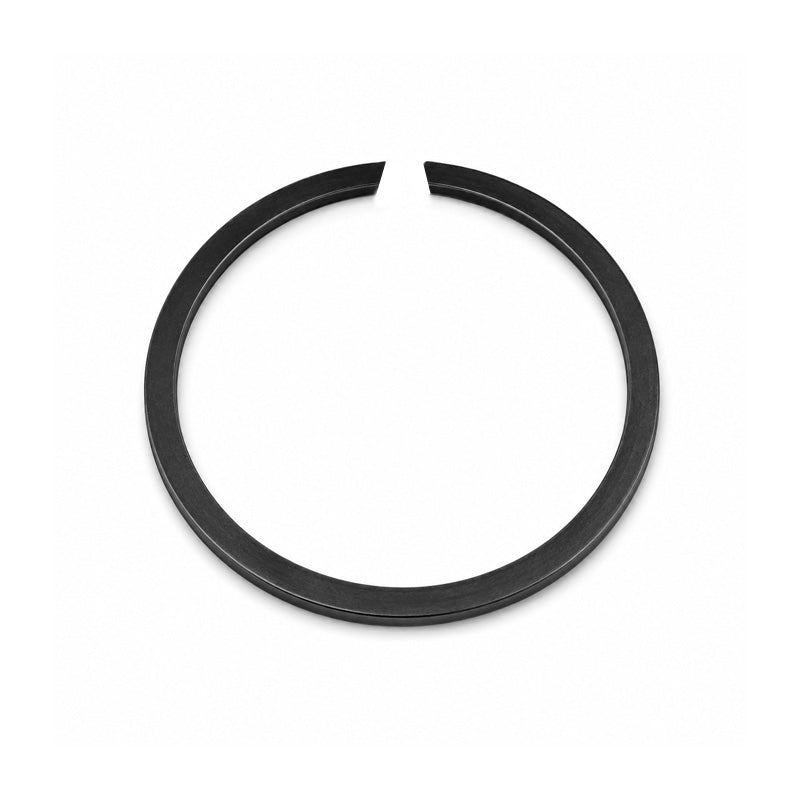

SW105 Snap Ring to Suit 105mm Shaft - Allow 2-3 Days
SW105 Snap Ring to Suit 105mm Shaft - Allow 2-3 Days
Equivalent to: DIN5417 DIN 5417 CFS105 CFS-105 2400-105 SW105 SW-105 M2400-105
Out of stock
Description
Description
|
Flat Wire Snap Rings for Shafts: These retainers are designed to fit into a groove in the shaft. Once fitted into the groove the part of the ring protruding from the groove serves to hold an assembly in place. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 101.7mm
- Shaft Size:
- 105mm
Technical
Technical
| d1 | 105mm |
|---|---|
| s | 2.5mm (Tolerance -0.1) |
| b | 3.4mm (Tolerance -0.1) |
| d3 max. | 101.7mm |
| d2 | 102.7mm (Tolerance - 0.22) |
| m min. | 2.7mm |
| FN | 65 kN |
| FR | 54 kN |
| n det x1000 | 2 rpm |
