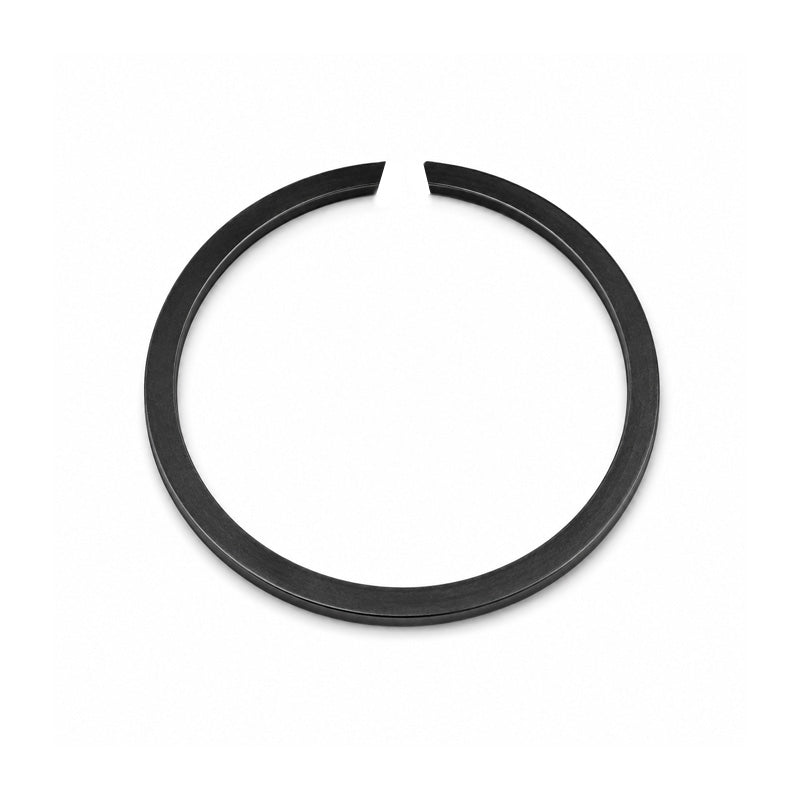

• SW65 Snap Ring to Suit 65mm Shaft
1 1

SKU: SW65-M2400

SW65 Snap Ring to Suit 65mm Shaft

SW65 Snap Ring to Suit 65mm Shaft
$1.13 ex VAT
$1.13 ex VAT
Sale Sold out

Equivalent to: DIN5417 DIN 5417 CFS65 CFS-65 2400-65 SW65 SW-65 M2400-65

In stock

Price Break
10+ $0.47
20+ $0.36
50+ $0.26
100+ $0.21
500+ $0.17
1000+ $0.13

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

Flat Wire Snap Rings for Shafts: These retainers are designed to fit into a groove in the shaft. Once fitted into the groove the part of the ring protruding from the groove serves to hold an assembly in place.
The snap rings are made from SAE 1065 carbon steel hardened to HRC 40-52

Brand / Quality:
Major Brand - High Quality
Inside Diameter:
62.6mm
Shaft Size:
65mm
Technical
d1 65mm
s 1.5mm (Tolerance -0.1)
b 2.3mm (Tolerance -0.1)
d3 max. 62.6mm
d2 63.5mm (Tolerance - 0.19)
m min. 1.6mm
FN 25.2 kN
FR 14.2 kN
n det x1000 3 rpm
