SKU: SY-24-S-IKO

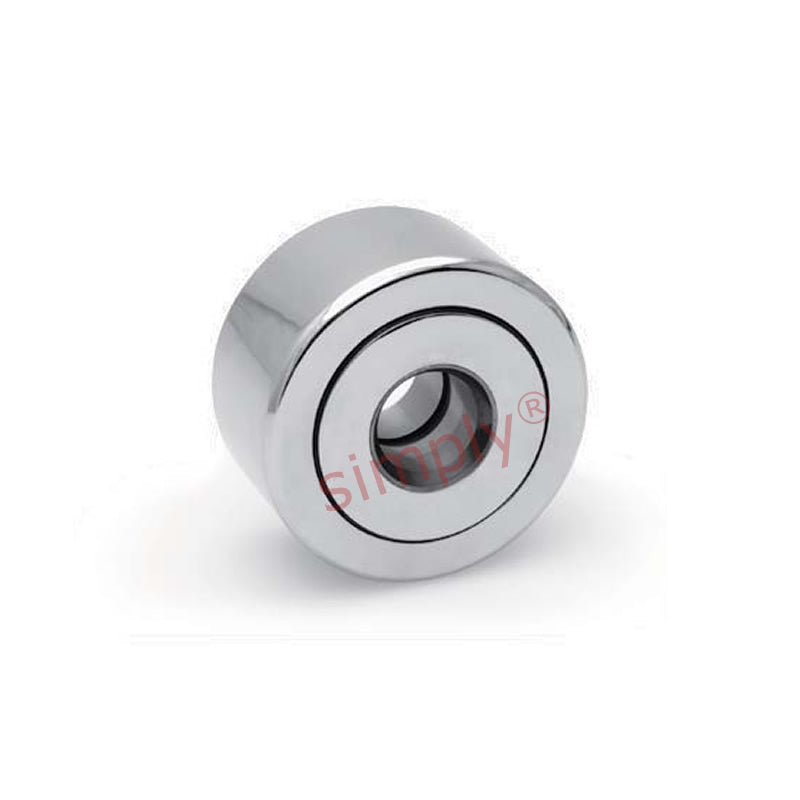

IKO SY24S Stainless Steel Sealed Cylindrical Cam Yoke Roller 0.25x0.75x0.5625 inch Allow 7-10 Days
IKO SY24S Stainless Steel Sealed Cylindrical Cam Yoke Roller 0.25x0.75x0.5625 inch Allow 7-10 Days
Out of stock
Description
Description
|
Stainless Steel Sealed Cam Yoke Roller: These bearings are dimensionally interchangeable with standard cam yoke rollers offered by other major manufacturers. The Seal Tight design minimises contamination to keep machinery running longer. These bearings contain a food-grade lubricant to ensure compatibility with any application. Benefits: Minimises contamination, re-lubricatable, high precision manufacturing. Note: Due to the material requirements of these bearings to have a hard-wearing construction, they will be made of a harder form of Stainless Steel, such as 440 or similar, which will be attracted by magnets. Quotations for non-magnetic versions are available upon request. |
- Brand / Quality:
- IKO - High Quality
- Outside Diameter:
- 19.05mm = 0.75 (3/4) inch
- Width:
- 14.29mm = 0.563 (9/16) inch
Technical
Technical
| A | 0.75 inch |
|---|---|
| B | 0.25 inch |
| C | 0.5 inch |
| D | 0.5625 inch |
| E | 1/2 inch |
| F | 3/32 inch |
| Recommended shaft diameter | 0.2497 inch |
| Basic dynamic rating | 1490 lbs |
| Max static capacity | 2100 lbs |
