SKU: SY-56-S-IKO

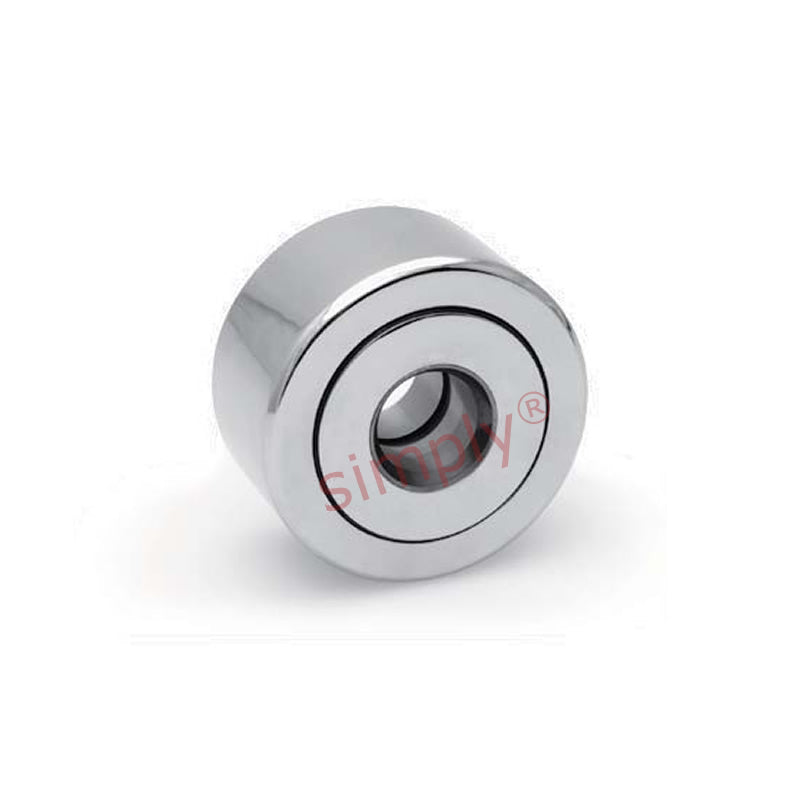

IKO SY56S Stainless Steel Sealed Cylindrical Cam Yoke Roller 0.5x1.75x1.0625 inch
IKO SY56S Stainless Steel Sealed Cylindrical Cam Yoke Roller 0.5x1.75x1.0625 inch
Out of stock
Description
Description
|
Stainless Steel Sealed Cam Yoke Roller: These bearings are dimensionally interchangeable with standard cam yoke rollers offered by other major manufacturers. The Seal Tight design minimises contamination to keep machinery running longer. These bearings contain a food-grade lubricant to ensure compatibility with any application. Benefits: Minimises contamination, re-lubricatable, high precision manufacturing. Note: Due to the material requirements of these bearings to have a hard-wearing construction, they will be made of a harder form of Stainless Steel, such as 440 or similar, which will be attracted by magnets. Quotations for non-magnetic versions are available upon request. |
- Brand / Quality:
- IKO - High Quality
- Outside Diameter:
- 44.45mm = 1.75 (1-3/4) inch
- Width:
- 26.99mm = 1.063 (1-1/16) inch
Technical
Technical
| A | 1.75 inch |
|---|---|
| B | 0.5 inch |
| C | 1 inch |
| D | 1.0625 inch |
| E | 1-3/64 inch |
| F | 3/32 inch |
| Recommended shaft diameter | 0.4997 inch |
| Basic dynamic rating | 5730 lbs |
| Max static capacity | 14800 lbs |
