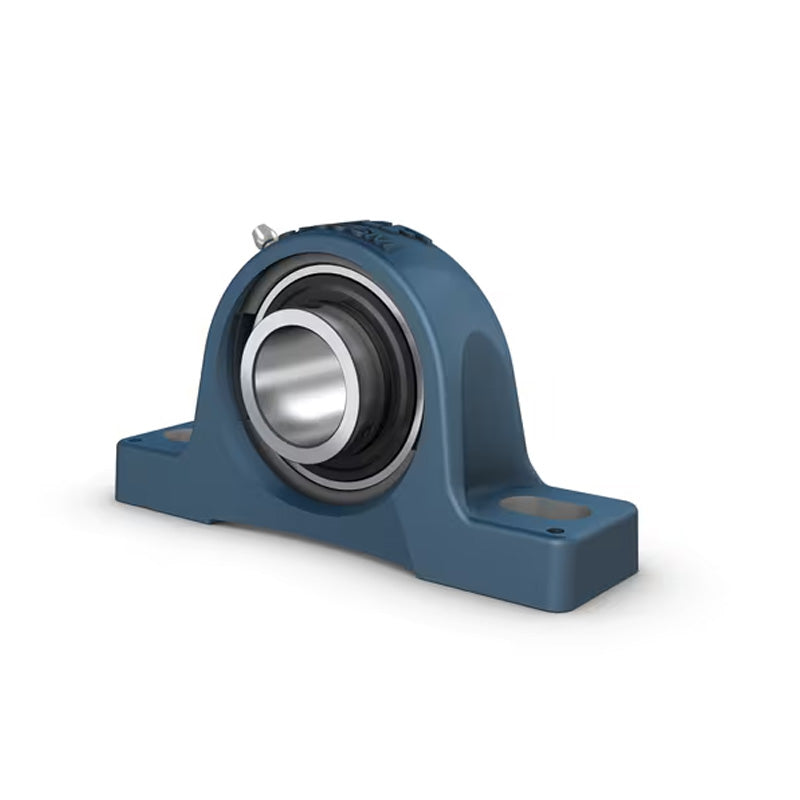

• SKF SY11/2TF/VA201 Y Type Two Bolt Pillow Block Housing with Steel Cage Insert for Imperial Shaft 1-1/2 inch
1 1

SKU: SY1.1/2TF/VA201-SKF

SKF SY11/2TF/VA201 Y Type Two Bolt Pillow Block Housing with Steel Cage Insert for Imperial Shaft 1-1/2 inch

SKF SY11/2TF/VA201 Y Type Two Bolt Pillow Block Housing with Steel Cage Insert for Imperial Shaft 1-1/2 inch
$319.96 ex VAT
$319.96 ex VAT
Sale Sold out

In stock

Price Break
10+ $214.32
19+ $202.28
29+ $199.87
39+ $197.46
49+ $195.05
74+ $192.65
99+ $180.61
199+ $178.20
249+ $175.79
499+ $173.38
999+ $168.56

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
SKF High Temperature Housings and Bearing Inserts: VA201 have a grey cast iron housing and have steel cages, they are lubricated with a polyalkylene glycol/graphite mixture and can be used at temperatures from -40 deg to +250 deg Celsius, at prolonged use over 200 deg Celsius dry lubricant pertains. All versions are characterised by their BLACK PHOSPHATED COATING on the inserts.They have a max rotational speed of 100 rpm
Benefits:High temp tolerance from -40 to +250 deg Celsius
Brand / Quality:
SKF - High Quality
Inside Diameter:
38.1mm = 1.5 (1-1/2) inch
Temperature Range:
High Temp
Technical
d 1-1/2 inch
A 48mm
B 49.2mm
H 99mm
H1 49.2mm
H2 19mm
J 135.5mm
L 175mm
N 24.5mm
N1 14mm
G 12mm
S1 30.2mm
Dynamic load C 30.7 kN
Static load Co 19 kN
Weight 1.84 kg
