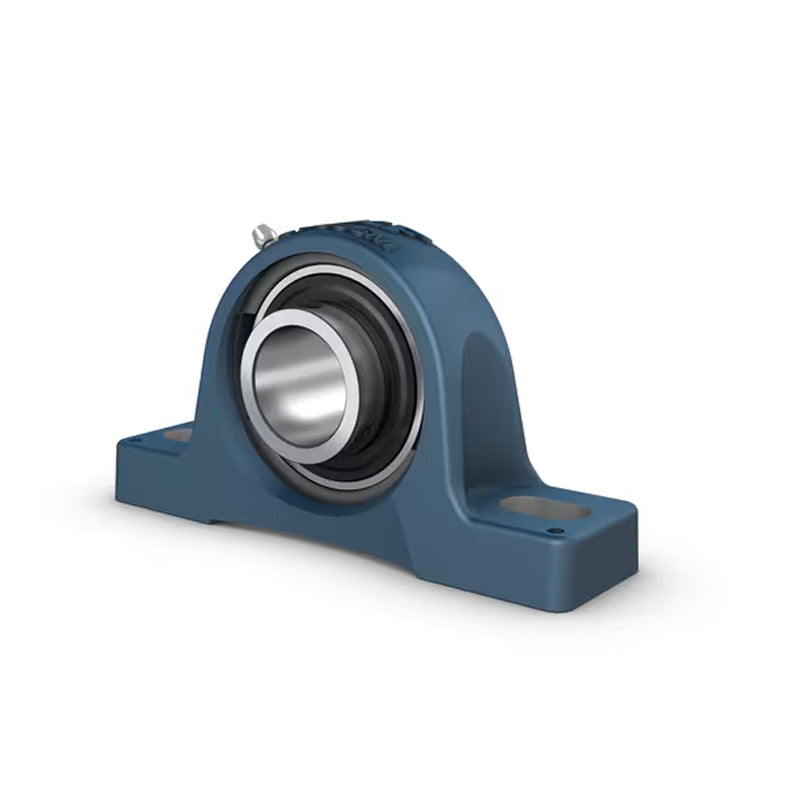

• SKF SY11/4TF/VA201 Y Type Two Bolt Pillow Block Housing with Steel Cage Insert for Imperial Shaft 1-1/4 inch
1 1

SKU: SY1.1/4TF/VA201-SKF

SKF SY11/4TF/VA201 Y Type Two Bolt Pillow Block Housing with Steel Cage Insert for Imperial Shaft 1-1/4 inch

SKF SY11/4TF/VA201 Y Type Two Bolt Pillow Block Housing with Steel Cage Insert for Imperial Shaft 1-1/4 inch
$283.19 ex VAT
$283.19 ex VAT
Sale Sold out

In stock

Price Break
10+ $189.69
19+ $179.03
29+ $176.90
39+ $174.77
49+ $172.64
74+ $170.51
99+ $159.85
199+ $157.72
249+ $155.59
499+ $153.46
999+ $149.19

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
SKF High Temperature Housings and Bearing Inserts: VA201 have a grey cast iron housing and have steel cages, they are lubricated with a polyalkylene glycol/graphite mixture and can be used at temperatures from -40 deg to +250 deg Celsius, at prolonged use over 200 deg Celsius dry lubricant pertains. All versions are characterised by their BLACK PHOSPHATED COATING on the inserts.They have a max rotational speed of 100 rpm
Benefits:High temp tolerance from -40 to +250 deg Celsius
Brand / Quality:
SKF - High Quality
Inside Diameter:
31.75mm = 1.25 (1-1/4) inch
Temperature Range:
High Temp
Technical
d 1-1/4 inch
A 45mm
B 42.9mm
H 93mm
H1 47.6mm
H2 19mm
J 126mm
L 160mm
N 21mm
N1 14mm
G 12mm
S1 25.4mm
Dynamic load C 25.5 kN
Static load Co 15.3 kN
Weight 1.57 kg
