SKU: SY1.3/16TF/VA201-SKF

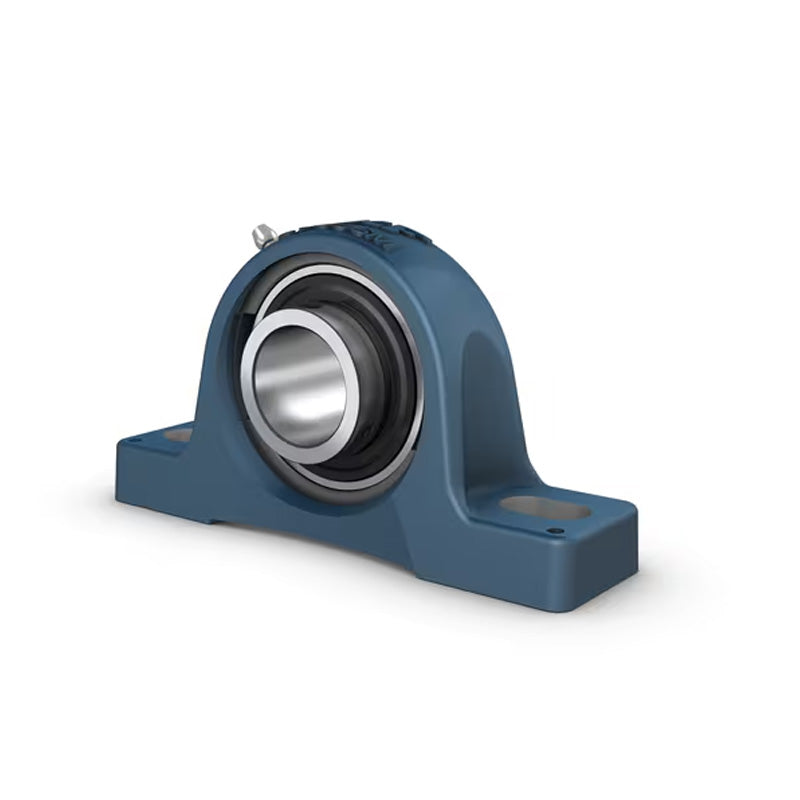

SKF SY13/16TF/VA201 Y Type Two Bolt Pillow Block Housing with Steel Cage Insert for Imperial Shaft 1-3/16 inch

Name: SKF SY13/16TF/VA201 Y Type Two Bolt Pillow Block Housing with Steel Cage Insert for Imperial Shaft 1-3/16 inch
Brand: SKF
SKU: SY1.3/16TF/VA201-SKF
Price: 267.48 USD
Availability: InStock

$267.48 ex VAT

Sale Sold out

In stock

Price Break

10+ $179.16

19+ $169.10

29+ $167.09

39+ $165.07

49+ $163.06

74+ $161.05

99+ $150.98

199+ $148.97

249+ $146.96

499+ $144.94

999+ $140.92

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

SKF High Temperature Housings and Bearing Inserts: VA201 have a grey cast iron housing and have steel cages, they are lubricated with a polyalkylene glycol/graphite mixture and can be used at temperatures from -40 deg to +250 deg Celsius, at prolonged use over 200 deg Celsius dry lubricant pertains. All versions are characterised by their BLACK PHOSPHATED COATING on the inserts.They have a max rotational speed of 100 rpm
Benefits:High temp tolerance from -40 to +250 deg Celsius

Brand / Quality:: SKF - High Quality
Inside Diameter:: 30.16mm = 1.187 (1-3/16) inch
Temperature Range:: High Temp

Technical

d	1-3/16 inch
A	40mm
B	38.1mm
H	82mm
H1	42.9mm
H2	17mm
J	117.5mm
L	152mm
N	23.5mm
N1	14mm
G	12mm
S1	22.2mm
Dynamic load C	19.5 kN
Static load Co	11.2 kN
Weight	1.13 kg
