SKU: SY1.3/4TF/VA228-SKF

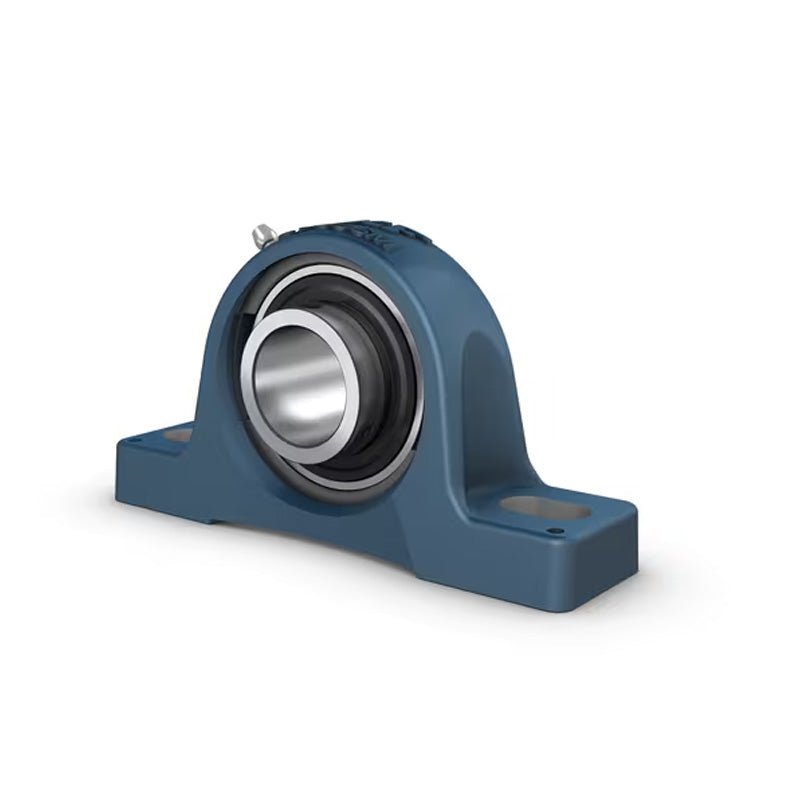

SKF SY13/4TF/VA228 Y Type Two Bolt Pillow Block Housing with Graphite Cage Insert for Imperial Shaft 1-3/4 inch

Name: SKF SY13/4TF/VA228 Y Type Two Bolt Pillow Block Housing with Graphite Cage Insert for Imperial Shaft 1-3/4 inch
Brand: SKF
SKU: SY1.3/4TF/VA228-SKF
Price: 388.99 USD
Availability: InStock

$388.99 ex VAT

Sale Sold out

In stock

Price Break

10+ $260.56

19+ $245.92

29+ $242.99

39+ $240.06

49+ $237.14

74+ $234.21

99+ $219.57

199+ $216.64

249+ $213.71

499+ $210.79

999+ $204.93

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

SKF High Temperature Housings and Bearing Inserts: VA228 have a grey cast iron housing and have a coronet type graphite cages, they are lubricated with a polyalkylene glycol/graphite mixture and can be used at temperatures from -50 deg to +350 deg Celsius, at prolonged use over 200 deg Celsius dry lubricant pertains. All versions are characterised by their BLACK PHOSPHATED COATING on the inserts. They have a max rotational speed of 100 rpm
Benefits:High temp tolerance from -50 to +350 deg Celsius

Brand / Quality:: SKF - High Quality
Inside Diameter:: 44.45mm = 1.75 (1-3/4) inch
Temperature Range:: High Temp

Technical

d	1-3/4 inch
A	48mm
B	49.2mm
H	107mm
H1	54mm
H2	20.6mm
J	143.5mm
L	187mm
N	22.5mm
N1	14.5mm
G	12mm
S1	30.2mm
Dynamic load C	33.2 kN
Static load Co	21.6 kN
Weight	2.32 kg
