SKU: SY1.7/16TF/VA228-SKF

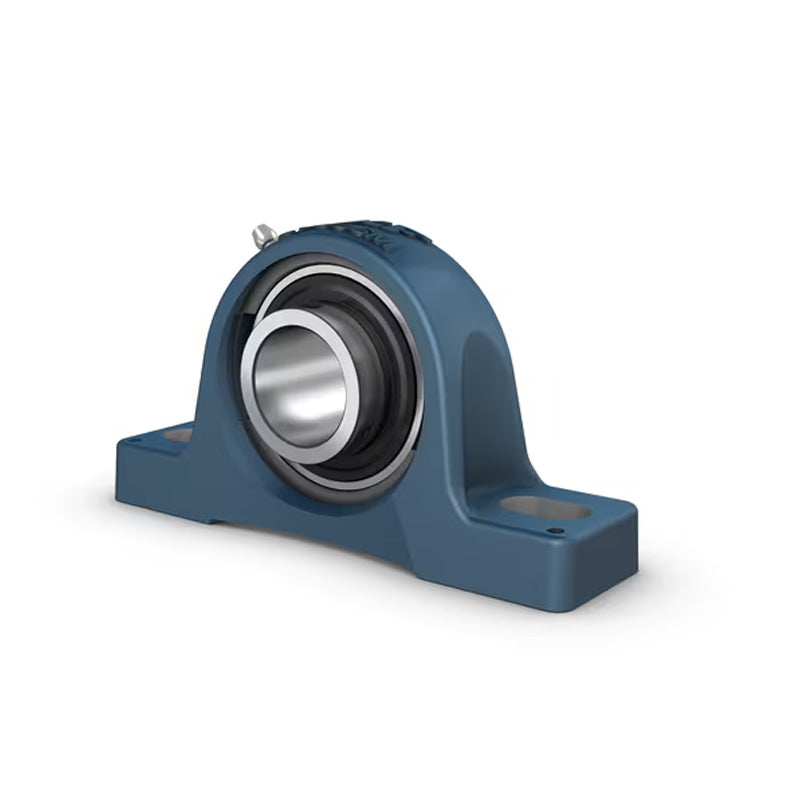

SKF SY17/16TF/VA228 Y Type Two Bolt Pillow Block Housing with Graphite Cage Insert for Imperial Shaft 1-7/16 inch

Name: SKF SY17/16TF/VA228 Y Type Two Bolt Pillow Block Housing with Graphite Cage Insert for Imperial Shaft 1-7/16 inch
Brand: SKF
SKU: SY1.7/16TF/VA228-SKF
Price: 475.51 USD
Availability: InStock

$475.51 ex VAT

Sale Sold out

In stock

Price Break

10+ $318.51

19+ $300.62

29+ $297.04

39+ $293.46

49+ $289.88

74+ $286.30

99+ $268.41

199+ $264.83

249+ $261.25

499+ $257.67

999+ $250.51

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

SKF High Temperature Housings and Bearing Inserts: VA228 have a grey cast iron housing and have a coronet type graphite cages, they are lubricated with a polyalkylene glycol/graphite mixture and can be used at temperatures from -50 deg to +350 deg Celsius, at prolonged use over 200 deg Celsius dry lubricant pertains. All versions are characterised by their BLACK PHOSPHATED COATING on the inserts. They have a max rotational speed of 100 rpm
Benefits:High temp tolerance from -50 to +350 deg Celsius

Brand / Quality:: SKF - High Quality
Inside Diameter:: 36.51mm = 1.437 (1-7/16) inch
Temperature Range:: High Temp

Technical

d	1-7/16 inch
A	45mm
B	43.9mm
H	93mm
H1	47.6mm
H2	19mm
J	126mm
L	160mm
N	21mm
N1	14mm
G	12mm
S1	25.4mm
Dynamic load C	25.5 kN
Static load Co	15.3 kN
Weight	1.45 kg
