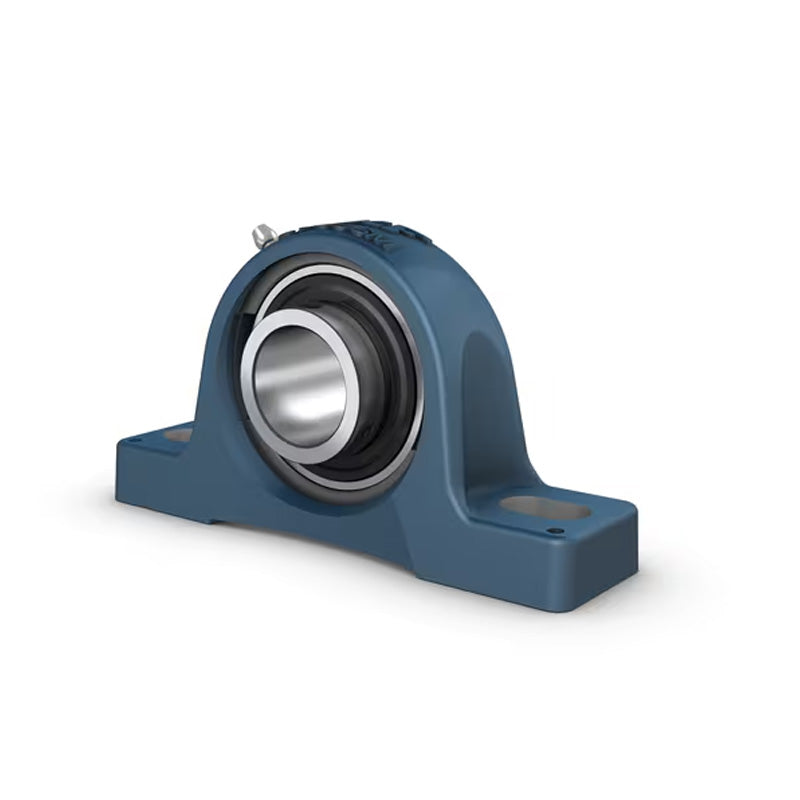

• SKF SY1TF/VA201 Y Type Two Bolt Pillow Block Housing with Steel Cage Insert for Imperial Shaft 1 inch
1 1

SKU: SY1.TF/VA201-SKF

SKF SY1TF/VA201 Y Type Two Bolt Pillow Block Housing with Steel Cage Insert for Imperial Shaft 1 inch

SKF SY1TF/VA201 Y Type Two Bolt Pillow Block Housing with Steel Cage Insert for Imperial Shaft 1 inch
$200.15 ex VAT
$200.15 ex VAT
Sale Sold out

In stock

Price Break
10+ $134.07
19+ $126.53
29+ $125.03
39+ $123.52
49+ $122.02
74+ $120.51
99+ $112.98
199+ $111.47
249+ $109.96
499+ $108.46
999+ $105.45

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
SKF High Temperature Housings and Bearing Inserts: VA201 have a grey cast iron housing and have steel cages, they are lubricated with a polyalkylene glycol/graphite mixture and can be used at temperatures from -40 deg to +250 deg Celsius, at prolonged use over 200 deg Celsius dry lubricant pertains. All versions are characterised by their BLACK PHOSPHATED COATING on the inserts.They have a max rotational speed of 100 rpm
Benefits:High temp tolerance from -40 to +250 deg Celsius
Brand / Quality:
SKF - High Quality
Inside Diameter:
25.4mm = 1 inch
Temperature Range:
High Temp
Technical
d 1 inch
A 36mm
B 34mm
H 17mm
H1 36.5mm
H2 16mm
J 102mm
L 130mm
N 19.5mm
N1 11.5mm
G 10mm
S1 19.8mm
Dynamic load C 14 kN
Static load Co 7.8 kN
Weight 0.75 kg
