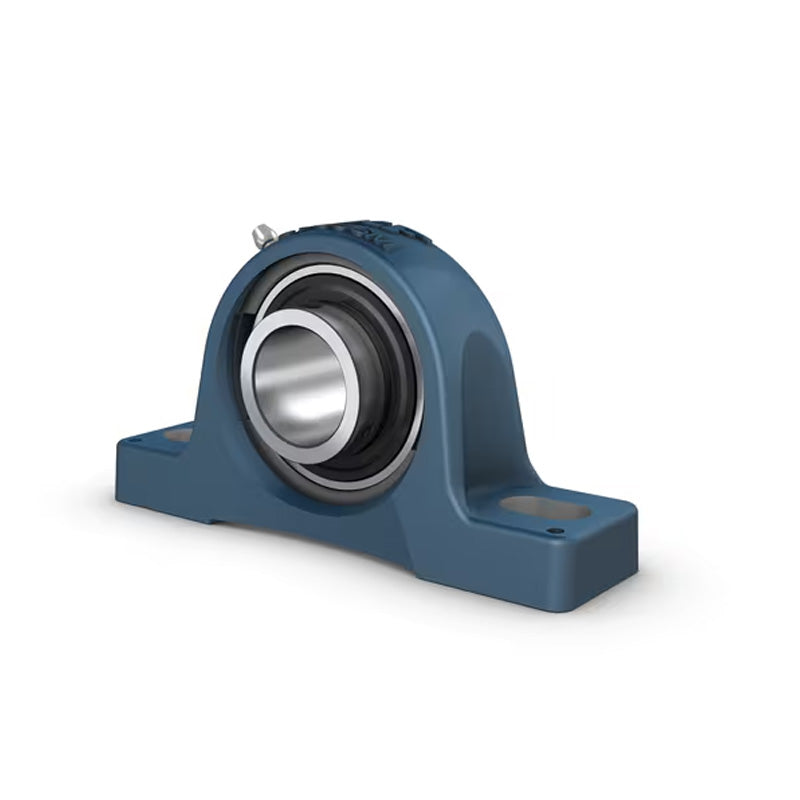

• SKF SY23/16TF/VA228 Y Type Two Bolt Pillow Block Housing with Graphite Cage Insert for Imperial Shaft 2-3/16 inch
1 1

SKU: SY2.3/16TF/VA228-SKF

SKF SY23/16TF/VA228 Y Type Two Bolt Pillow Block Housing with Graphite Cage Insert for Imperial Shaft 2-3/16 inch

SKF SY23/16TF/VA228 Y Type Two Bolt Pillow Block Housing with Graphite Cage Insert for Imperial Shaft 2-3/16 inch
$477.48 ex VAT
$477.48 ex VAT
Sale Sold out

In stock

Price Break
10+ $319.83
19+ $301.86
29+ $298.27
39+ $294.67
49+ $291.08
74+ $287.49
99+ $269.52
199+ $265.92
249+ $262.33
499+ $258.74
999+ $251.55

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
SKF High Temperature Housings and Bearing Inserts: VA228 have a grey cast iron housing and have a coronet type graphite cages, they are lubricated with a polyalkylene glycol/graphite mixture and can be used at temperatures from -50 deg to +350 deg Celsius, at prolonged use over 200 deg Celsius dry lubricant pertains. All versions are characterised by their BLACK PHOSPHATED COATING on the inserts. They have a max rotational speed of 100 rpm
Benefits:High temp tolerance from -50 to +350 deg Celsius
Brand / Quality:
SKF - High Quality
Inside Diameter:
55.56mm = 2.187 (2-3/16) inch
Temperature Range:
High Temp
Technical
d 2-3/16 inch
A 60mm
B 55.6mm
H 127mm
H1 63.5mm
H2 23.8mm
J 171.5mm
L 219mm
N 27.5mm
N1 18mm
G 16mm
S1 33.4mm
Dynamic load C 25 kN
Static load Co 29 kN
Weight 3.7 kg
