SKU: SY2.TF/VA201-SKF

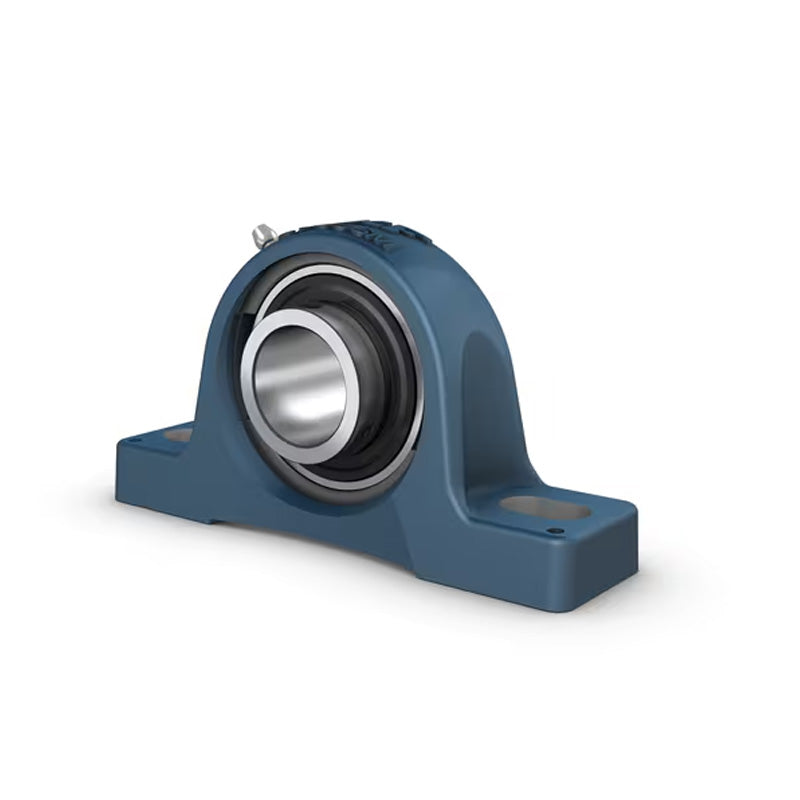

SKF SY2TF/VA201 Y Type Two Bolt Pillow Block Housing with Steel Cage Insert for Imperial Shaft 2 inch

Name: SKF SY2TF/VA201 Y Type Two Bolt Pillow Block Housing with Steel Cage Insert for Imperial Shaft 2 inch
Brand: SKF
SKU: SY2.TF/VA201-SKF
Price: 401.84 USD
Availability: InStock

$401.84 ex VAT

Sale Sold out

In stock

Price Break

10+ $269.16

19+ $254.04

29+ $251.02

39+ $247.99

49+ $244.97

74+ $241.94

99+ $226.82

199+ $223.80

249+ $220.77

499+ $217.75

999+ $211.70

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

SKF High Temperature Housings and Bearing Inserts: VA201 have a grey cast iron housing and have steel cages, they are lubricated with a polyalkylene glycol/graphite mixture and can be used at temperatures from -40 deg to +250 deg Celsius, at prolonged use over 200 deg Celsius dry lubricant pertains. All versions are characterised by their BLACK PHOSPHATED COATING on the inserts.They have a max rotational speed of 100 rpm
Benefits:High temp tolerance from -40 to +250 deg Celsius

Brand / Quality:: SKF - High Quality
Inside Diameter:: 50.8mm = 2 inch
Temperature Range:: High Temp

Technical

d	2 inch
A	60mm
B	55.6mm
H	127mm
H1	63.5mm
H2	23.8mm
J	171.5mm
L	219mm
N	27.5mm
N1	18mm
G	16mm
S1	33.4mm
Dynamic load C	43.6 kN
Static load Co	29 kN
Weight	3.75 kg
