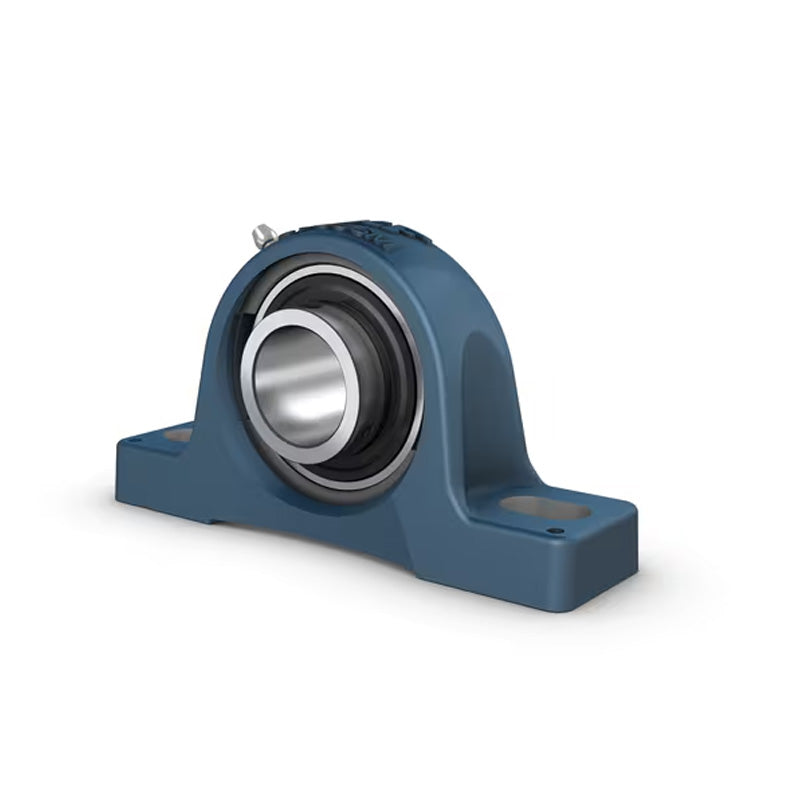

• SKF SY20TFVA201 Y Type Two Bolt Pillow Block Housing with Steel Cage Insert for Metric Shaft 20mm
1 1

SKU: SY20TF/VA201-SKF

SKF SY20TFVA201 Y Type Two Bolt Pillow Block Housing with Steel Cage Insert for Metric Shaft 20mm

SKF SY20TFVA201 Y Type Two Bolt Pillow Block Housing with Steel Cage Insert for Metric Shaft 20mm
$175.73 ex VAT
$175.73 ex VAT
Sale Sold out

In stock

Price Break
10+ $117.71
19+ $111.10
29+ $109.78
39+ $108.45
49+ $107.13
74+ $105.81
99+ $99.19
199+ $97.87
249+ $96.55
499+ $95.23
999+ $92.58

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
SKF High Temperature Housings and Bearing Inserts: VA201 have a grey cast iron housing and have steel cages, they are lubricated with a polyalkylene glycol/graphite mixture and can be used at temperatures from -40 deg to +250 deg Celsius, at prolonged use over 200 deg Celsius dry lubricant pertains. All versions are characterised by their BLACK PHOSPHATED COATING on the inserts.They have a max rotational speed of 100 rpm
Benefits:High temp tolerance from -40 to +250 deg Celsius
Brand / Quality:
SKF - High Quality
Inside Diameter:
20mm
Temperature Range:
High Temp
Technical
d 20mm
A 32mm
B 31mm
H 64mm
H1 33.3mm
H2 14mm
J 97mm
L 127mm
N 20.5mm
N1 11.5mm
G 10mm
S1 18.3mm
Dynamic load C 12.7 kN
Static load Co 6.55 kN
Weight 0.57 kg
