SKU: SY20TF/VA228-SKF

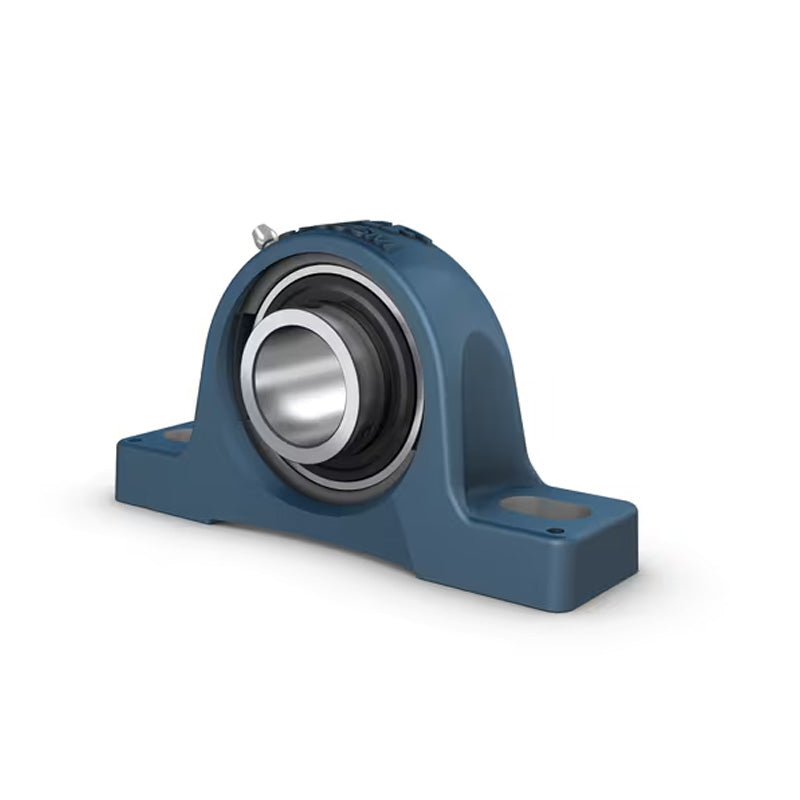

SKF SY20TFVA228 Y Type Two Bolt Pillow Block Housing with Graphite Cage Insert for Metric Shaft 20mm

Name: SKF SY20TFVA228 Y Type Two Bolt Pillow Block Housing with Graphite Cage Insert for Metric Shaft 20mm
Brand: SKF
SKU: SY20TF/VA228-SKF
Price: 259.08 USD
Availability: InStock

$259.08 ex VAT

Sale Sold out

In stock

Price Break

10+ $173.54

19+ $163.79

29+ $161.84

39+ $159.89

49+ $157.94

74+ $155.99

99+ $146.24

199+ $144.29

249+ $142.34

499+ $140.39

999+ $136.49

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

SKF High Temperature Housings and Bearing Inserts: VA228 have a grey cast iron housing and have a coronet type graphite cages, they are lubricated with a polyalkylene glycol/graphite mixture and can be used at temperatures from -50 deg to +350 deg Celsius, at prolonged use over 200 deg Celsius dry lubricant pertains. All versions are characterised by their BLACK PHOSPHATED COATING on the inserts. They have a max rotational speed of 100 rpm
Benefits:High temp tolerance from -50 to +350 deg Celsius

Brand / Quality:: SKF - High Quality
Inside Diameter:: 20mm
Temperature Range:: High Temp

Technical

d	20mm
A	32mm
B	31mm
H	64mm
H1	33.3mm
H2	14mm
J	97mm
L	127mm
N	20.5mm
N1	11.5mm
G	10mm
S1	18.3mm
Dynamic load C	12.7 kN
Static load Co	6.55 kN
Weight	0.57 kg
