SKU: SY20TR-SKF
SKF SY20TR Cast Iron Plummer Block with Grub Screw Insert 20mm Bore
SKF SY20TR Cast Iron Plummer Block with Grub Screw Insert 20mm Bore
Regular price
$64.02
ex VAT
Regular price
Sale price
$64.02
ex VAT
In stock
Price Break
10+
$42.88
20+
$40.47
30+
$39.99
40+
$39.51
50+
$39.02
75+
$38.54
100+
$36.13
200+
$35.65
250+
$35.17
500+
$34.69
1000+
$33.73
Quantity
Couldn't load pickup availability
Description
Description
|
SKF Y-bearing Plummer Block Units with a Cast Housing: These units contain a grey cast iron housing with a grease fitting in the housing which allows it to be re-lubricated. This makes them suitable for bearing arrangements that operate in high levels of contamination, high speeds, high temperatures or relatively heavy loads. The housing design has two oblong holes for the attachment bolts in the base of the housing. Benefits: Grease fitting allows re-lubrication |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 20mm
- Style:
- SY
- Bolt Hole Centres:
- 97mm

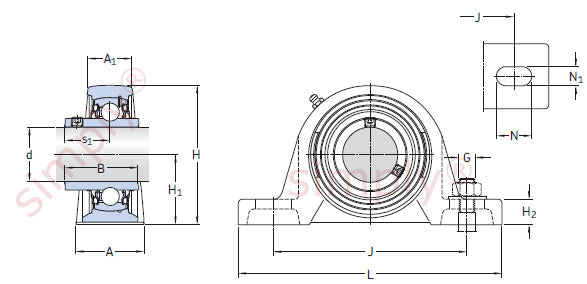

Technical
Technical
| d | 20mm |
|---|---|
| A | 32mm |
| A1 | 21mm |
| B | 31mm |
| H | 65mm |
| H1 | 33.3mm |
| H2 | 14mm |
| J | 97mm |
| L | 127mm |
| N | 20.5mm |
| N1 | 11.5mm |
| G | 10mm |
| s1 | 18.3mm |
| Static load Cr | 6.55 kN |
| Dynamic load Cor | 12.7 kN |
| Fatigue load limit Pu | 0.28 kN |
| Limiting speed | 5000 rpm |
| A5 | 18.5mm |
| Weight | 0.57 kg |
| Housing | SY504M |
| Insert | YAR204-2RF |
| Compatible end cover closed | ECY204 |
