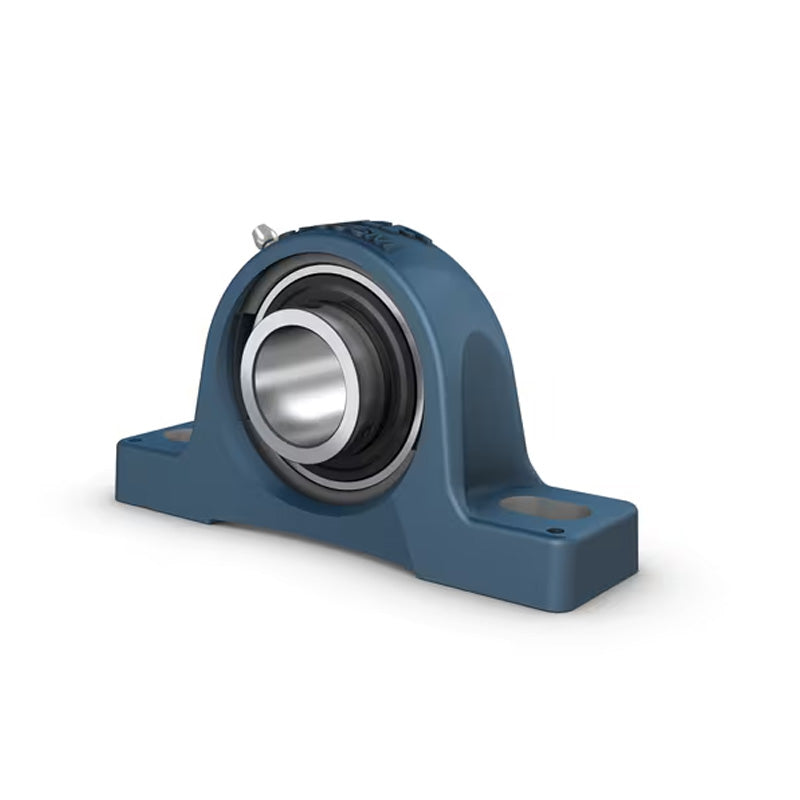

• SKF SY40TFVA201 Y Type Two Bolt Pillow Block Housing with Steel Cage Insert for Metric Shaft 40mm
1 1

SKU: SY40TF/VA201-SKF

SKF SY40TFVA201 Y Type Two Bolt Pillow Block Housing with Steel Cage Insert for Metric Shaft 40mm

SKF SY40TFVA201 Y Type Two Bolt Pillow Block Housing with Steel Cage Insert for Metric Shaft 40mm
$341.30 ex VAT
$341.30 ex VAT
Sale Sold out

In stock

Price Break
10+ $228.62
19+ $215.77
29+ $213.20
39+ $210.63
49+ $208.07
74+ $205.50
99+ $192.65
199+ $190.08
249+ $187.52
499+ $184.95
999+ $179.81

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
SKF High Temperature Housings and Bearing Inserts: VA201 have a grey cast iron housing and have steel cages, they are lubricated with a polyalkylene glycol/graphite mixture and can be used at temperatures from -40 deg to +250 deg Celsius, at prolonged use over 200 deg Celsius dry lubricant pertains. All versions are characterised by their BLACK PHOSPHATED COATING on the inserts.They have a max rotational speed of 100 rpm
Benefits:High temp tolerance from -40 to +250 deg Celsius
Brand / Quality:
SKF - High Quality
Inside Diameter:
40mm
Temperature Range:
High Temp
Technical
d 40mm
A 48mm
B 49.2mm
H 99mm
H1 49.2mm
H2 19mm
J 135.5mm
L 175mm
N 24.5mm
N1 14mm
G 12mm
S1 30.2mm
Dynamic load C 30.7 kN
Static load Co 19 kN
Weight 1.8 kg
