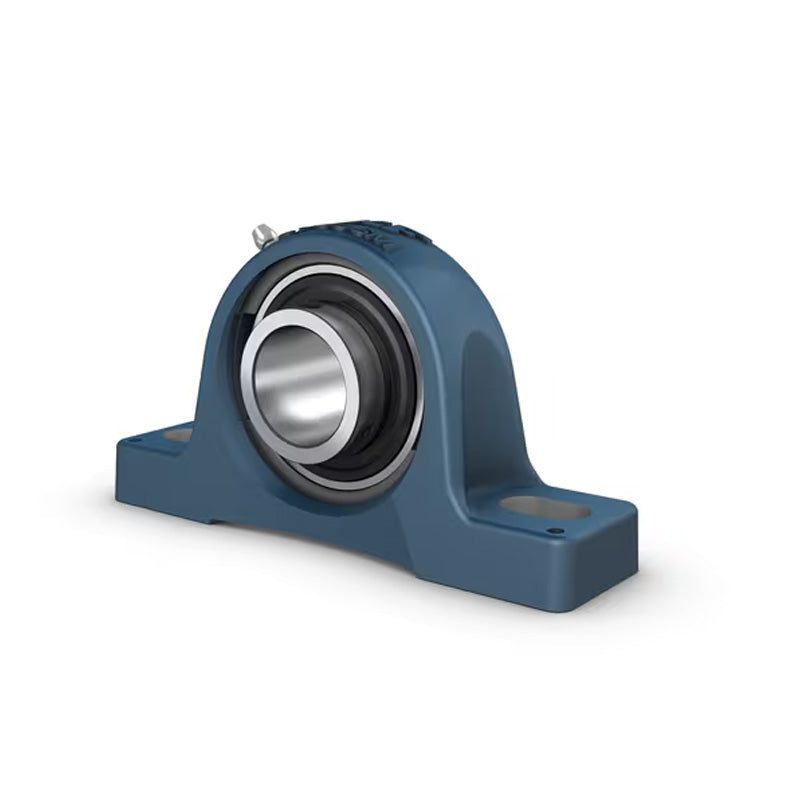

• SKF SY45TFVA201 Y Type Two Bolt Pillow Block Housing with Steel Cage Insert for Metric Shaft 45mm
1 1

SKU: SY45TF/VA201-SKF

SKF SY45TFVA201 Y Type Two Bolt Pillow Block Housing with Steel Cage Insert for Metric Shaft 45mm

SKF SY45TFVA201 Y Type Two Bolt Pillow Block Housing with Steel Cage Insert for Metric Shaft 45mm
$392.95 ex VAT
$392.95 ex VAT
Sale Sold out

In stock

Price Break
10+ $263.21
19+ $248.42
29+ $245.46
39+ $242.51
49+ $239.55
74+ $236.59
99+ $221.81
199+ $218.85
249+ $215.89
499+ $212.93
999+ $207.02

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
SKF High Temperature Housings and Bearing Inserts: VA201 have a grey cast iron housing and have steel cages, they are lubricated with a polyalkylene glycol/graphite mixture and can be used at temperatures from -40 deg to +250 deg Celsius, at prolonged use over 200 deg Celsius dry lubricant pertains. All versions are characterised by their BLACK PHOSPHATED COATING on the inserts.They have a max rotational speed of 100 rpm
Benefits:High temp tolerance from -40 to +250 deg Celsius
Brand / Quality:
SKF - High Quality
Inside Diameter:
45mm
Temperature Range:
High Temp
Technical
d 45mm
A 48mm
B 49.2mm
H 107mm
H1 54mm
H2 20.6mm
J 143.5mm
L 187mm
N 22.5mm
N1 14mm
G 12mm
S1 30.2mm
Dynamic load C 33.2 kN
Static load Co 21.6 kN
Weight 2.3 kg
