• SKF SY55TFVA201 Y Type Two Bolt Pillow Block Housing with Steel Cage Insert for Metric Shaft 55mm
1 1

SKU: SY55TF/VA201-SKF

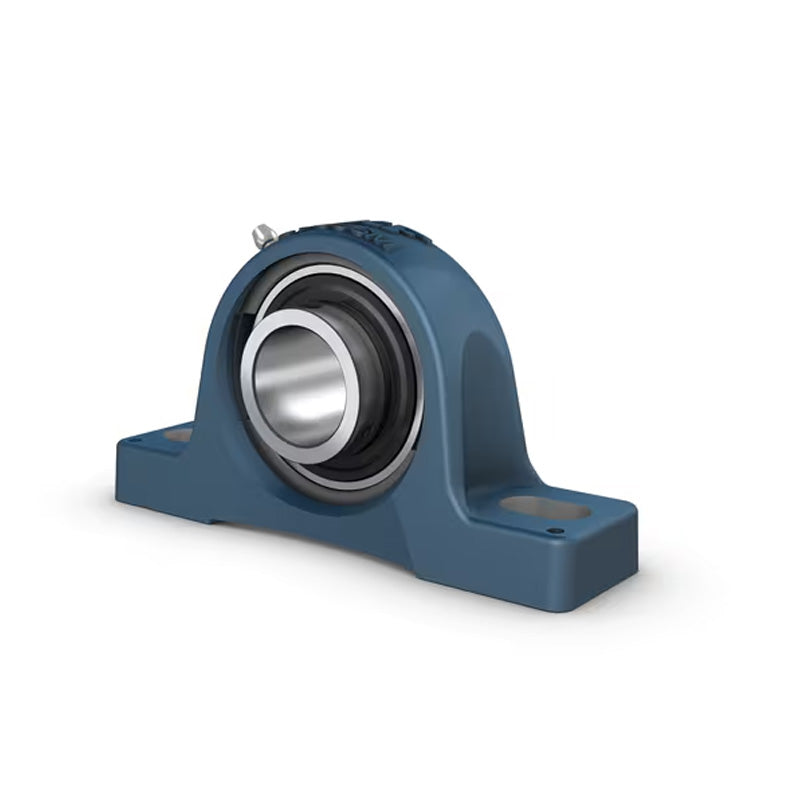

SKF SY55TFVA201 Y Type Two Bolt Pillow Block Housing with Steel Cage Insert for Metric Shaft 55mm

SKF SY55TFVA201 Y Type Two Bolt Pillow Block Housing with Steel Cage Insert for Metric Shaft 55mm
$443.85 ex VAT
$443.85 ex VAT
Sale Sold out

In stock

Price Break
10+ $297.31
19+ $280.60
29+ $277.26
39+ $273.92
49+ $270.58
74+ $267.24
99+ $250.54
199+ $247.20
249+ $243.86
499+ $240.52
999+ $233.84

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
SKF High Temperature Housings and Bearing Inserts: VA201 have a grey cast iron housing and have steel cages, they are lubricated with a polyalkylene glycol/graphite mixture and can be used at temperatures from -40 deg to +250 deg Celsius, at prolonged use over 200 deg Celsius dry lubricant pertains. All versions are characterised by their BLACK PHOSPHATED COATING on the inserts.They have a max rotational speed of 100 rpm
Benefits:High temp tolerance from -40 to +250 deg Celsius
Brand / Quality:
SKF - High Quality
Inside Diameter:
55mm
Temperature Range:
High Temp
Technical
d 55mm
A 60mm
B 55.6mm
H 127mm
H1 63.5mm
H2 23.8mm
J 171.5mm
L 219mm
N 27.5mm
N1 18mm
G 16mm
S1 33.4mm
Dynamic load C 43.6 kN
Static load Co 29 kN
Weight 3.59 kg
