• SKF SY60TFVA228 Y Type Two Bolt Pillow Block Housing with Graphite Cage Insert for Metric Shaft 60mm - Allow 2-3 Days
1 1

SKU: SY60TF/VA228-SKF

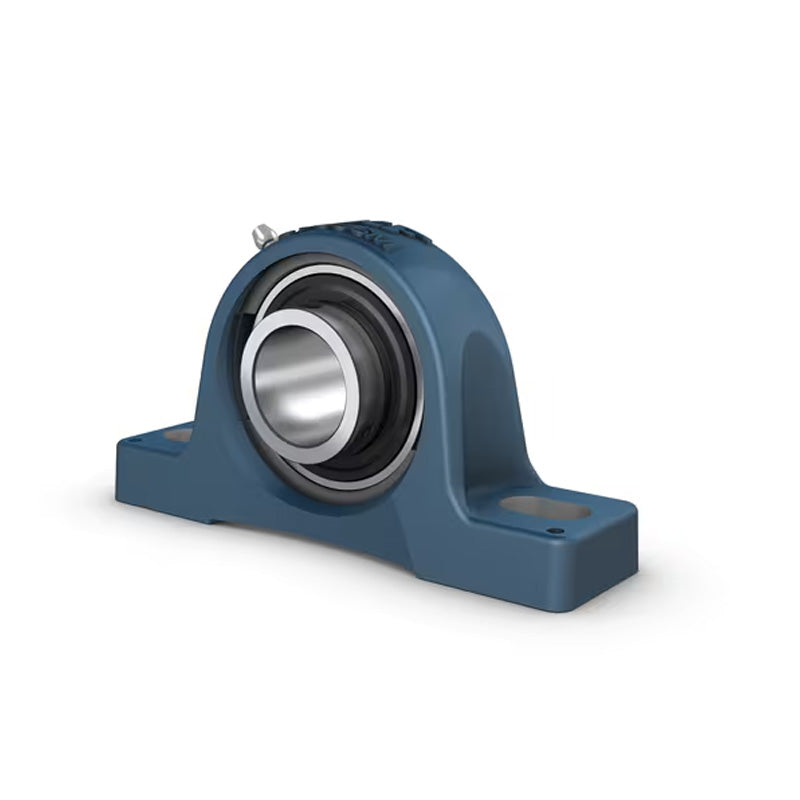

SKF SY60TFVA228 Y Type Two Bolt Pillow Block Housing with Graphite Cage Insert for Metric Shaft 60mm - Allow 2-3 Days

SKF SY60TFVA228 Y Type Two Bolt Pillow Block Housing with Graphite Cage Insert for Metric Shaft 60mm - Allow 2-3 Days
$588.86 ex VAT
$588.86 ex VAT
Sale Sold out

In stock

Price Break
10+ $438.69
19+ $420.96
29+ $412.10
39+ $398.81
49+ $389.95
74+ $367.79
99+ $310.18
199+ $0.00
249+ $0.00
499+ $0.00
999+ $0.00

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
SKF High Temperature Housings and Bearing Inserts: VA228 have a grey cast iron housing and have a coronet type graphite cages, they are lubricated with a polyalkylene glycol/graphite mixture and can be used at temperatures from -50 deg to +350 deg Celsius, at prolonged use over 200 deg Celsius dry lubricant pertains. All versions are characterised by their BLACK PHOSPHATED COATING on the inserts. They have a max rotational speed of 100 rpm
Benefits:High temp tolerance from -50 to +350 deg Celsius
Brand / Quality:
SKF - High Quality
Inside Diameter:
60mm
Temperature Range:
High Temp
Technical
d 60mm
A 60mm
B 65.1mm
H 139.7mm
H1 69.9mm
H2 26mm
J 190.5mm
L 240mm
N 29mm
N1 18mm
G 16mm
S1 39.7mm
Dynamic load C 52.7 kN
Static load Co 36 kN
Weight 4.5 kg
