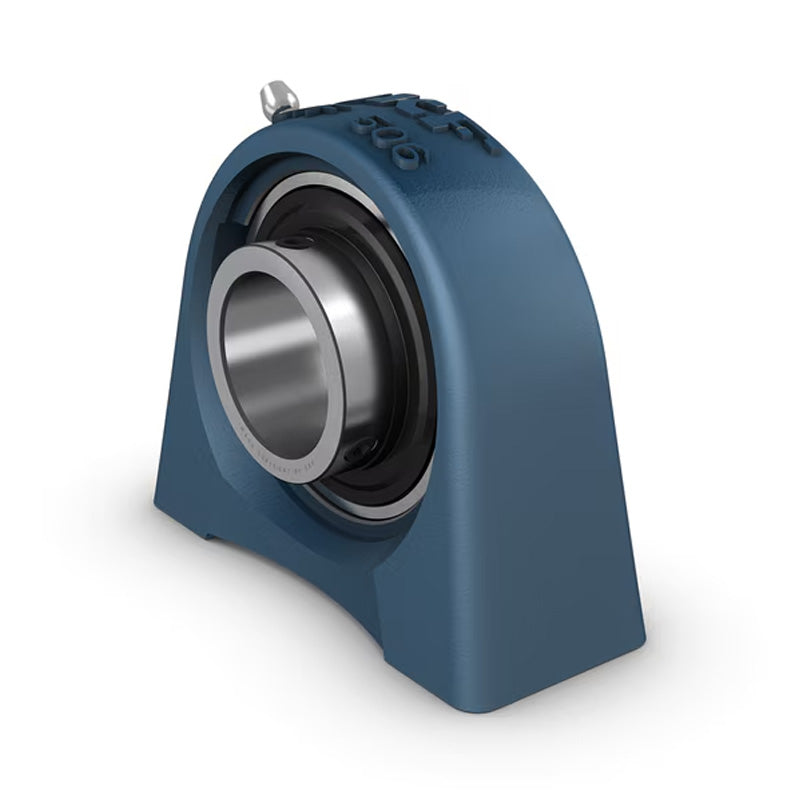

SKF SYF25FM Small Footprint Cast Iron Plummer Block with Eccentric Collar 25mm Insert
SKF SYF25FM Small Footprint Cast Iron Plummer Block with Eccentric Collar 25mm Insert
Regular price
$78.57
ex VAT
Regular price
Sale price
$78.57
ex VAT
In stock
Price Break
10+
$52.63
20+
$49.67
30+
$49.08
40+
$48.49
50+
$47.89
75+
$47.30
100+
$44.35
200+
$43.76
250+
$43.16
500+
$42.57
1000+
$41.39
Quantity
Couldn't load pickup availability
Description
Description
|
SKF Y-bearing Plummer Block Units with a Shortened Cast Housing and Locking Collar: These units contain a grey cast iron housing with a grease fitting in the housing which allows it to be re-lubricated. This makes them suitable for bearing arrangements that operate in high levels of contamination, high speeds, high temperatures or relatively heavy loads. The housing design has a shortened base that contains two threaded holes in the support base. Benefits: Grease fitting allows re-lubrication |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 25mm
- Style:
- SYF
- Bolt Hole Centres:
- 50.8mm
Technical
Technical
| d | 25mm |
|---|---|
| A | 36mm |
| A1 | 22mm |
| B1 | 31mm |
| H | 70.5mm |
| H1 | 36.5mm |
| J | 50.8mm |
| L | 70mm |
| G | M10 |
| G1 | 15mm |
| s1 | 23.5mm |
| Static load Cr | 7.8 kN |
| Dynamic load Cor | 14 kN |
| Fatigue load limit Pu | 0.335 kN |
| Limiting speed | 7000 rpm |
| Weight | 0.52 kg |
| Housing | SYF505 |
| Insert | YET205 |
