SKU: SYF45TF-SKF
SKF SYF45TF Small Footprint Cast Iron Plummer Block with Grub Screw Insert 45mm
SKF SYF45TF Small Footprint Cast Iron Plummer Block with Grub Screw Insert 45mm
Regular price
$128.68
ex VAT
Regular price
Sale price
$128.68
ex VAT
In stock
Price Break
10+
$86.19
20+
$81.35
30+
$80.38
40+
$79.41
50+
$78.45
75+
$77.48
100+
$72.63
200+
$71.67
250+
$70.70
500+
$69.73
1000+
$67.79
Quantity
Couldn't load pickup availability
Description
Description
|
SKF Y-bearing Plummer Block Units with a Cast Housing: These units contain a grey cast iron housing with a grease fitting in the housing which allows it to be re-lubricated. This makes them suitable for bearing arrangements that operate in high levels of contamination, high speeds, high temperatures or relatively heavy loads. The housing design has a shortened base that contains two threaded holes in the support base. Benefits: Grease fitting allows re-lubrication |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 45mm
- Style:
- SYF
- Bolt Hole Centres:
- 95.3mm

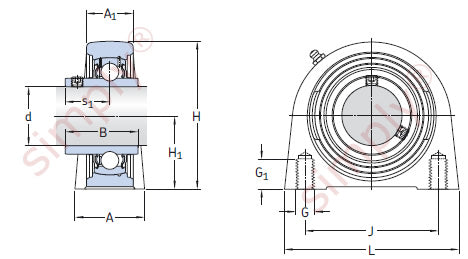

Technical
Technical
| d | 45mm |
|---|---|
| A | 48mm |
| A1 | 32mm |
| B | 49.2mm |
| H | 107.5mm |
| H1 | 54mm |
| J | 95.3mm |
| L | 120mm |
| G | M12 |
| G1 | 22mm |
| s1 | 30.2mm |
| Static load Cr | 21.6 kN |
| Dynamic load Cor | 33.2 kN |
| Fatigue load limit Pu | 0.915 kN |
| Limiting speed | 4300 rpm |
| Weight | 1.8 kg |
| Housing | SYF509 |
| Insert | YAR209-2F |
