SKU: SYK25TR-SKF

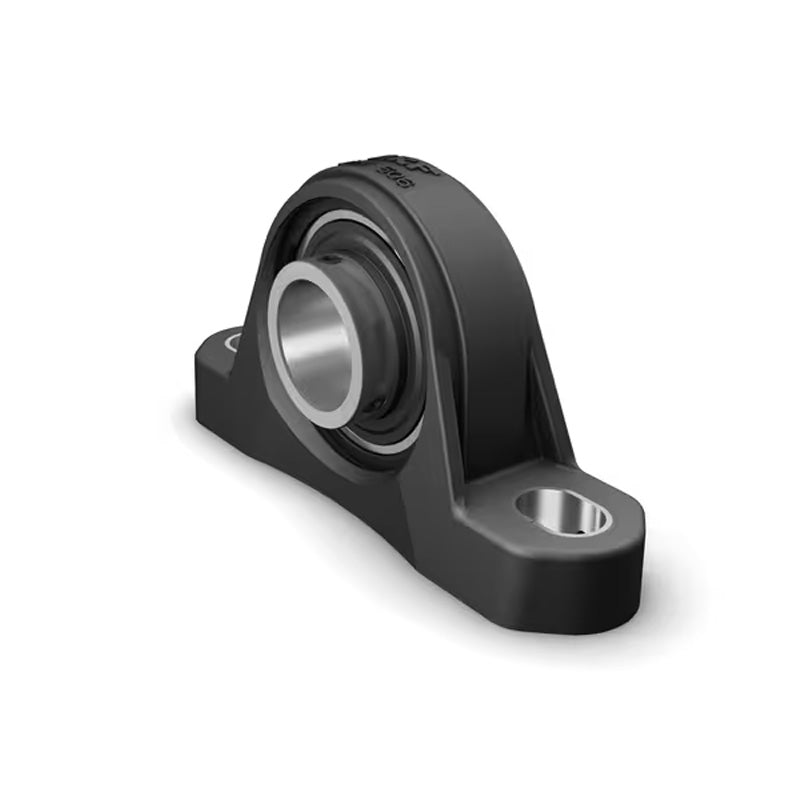

SKF SYK25TR Grub Screw Type Composite Plummer Block 25mm Bore
SKF SYK25TR Grub Screw Type Composite Plummer Block 25mm Bore
Regular price
$62.14
ex VAT
Regular price
Sale price
$62.14
ex VAT
In stock
Price Break
10+
$41.62
20+
$39.28
30+
$38.82
40+
$38.35
50+
$37.88
75+
$37.41
100+
$35.08
200+
$34.61
250+
$34.14
500+
$33.67
1000+
$32.74
Quantity
Couldn't load pickup availability
Description
Description
|
SKF Y-TECH SYK series Plummer Block Units: These plummer block units have housings made of composite material. They were developed for bearing arrangements that must operate reliably in difficult environments for extended periods of time without maintenance. These units are fitted with Y-bearings in the YAR 2-2F or YAR 2-2RF series and are attached to the shaft with grub screws. The TF denomination is supplied with the YAR 2-2F series inserts, these have a single seal. The TR are supplied with YAR 2-2RF series inserts and have a double wash down seal. SKF 2RF bearing seals provide an innovative, effective, proven multi-barrier design that prevents contamination and retains lubrication. During high-pressure wash downs, 2RF seals keep water and detergents out of seal contact areas. |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 25mm
- Style:
- SYK
- Bolt Hole Centres:
- 105mm
Technical
Technical
| d | 25mm |
|---|---|
| A | 32mm |
| A1 | 22mm |
| B | 34.1mm |
| H | 70.5mm |
| H1 | 36.5mm |
| H2 | 16mm |
| J | 105mm |
| L | 134mm |
| N | 17.5mm |
| N1 | 12mm |
| G | 10mm |
| s1 | 19.8mm |
| Static load Cr | 7.8 kN |
| Dynamic load Cor | 14 kN |
| Fatigue load limit Pu | 0.335 kN |
| Limiting speed | 4300 rpm |
| A5 | 18mm |
| Weight | 0.29 kg |
| Housing | SYK505 |
| Insert | YAR205-2RF |
| Compatible end cover closed | ECY205 |
