SKU: T1045-1.3/4DECG-RHP

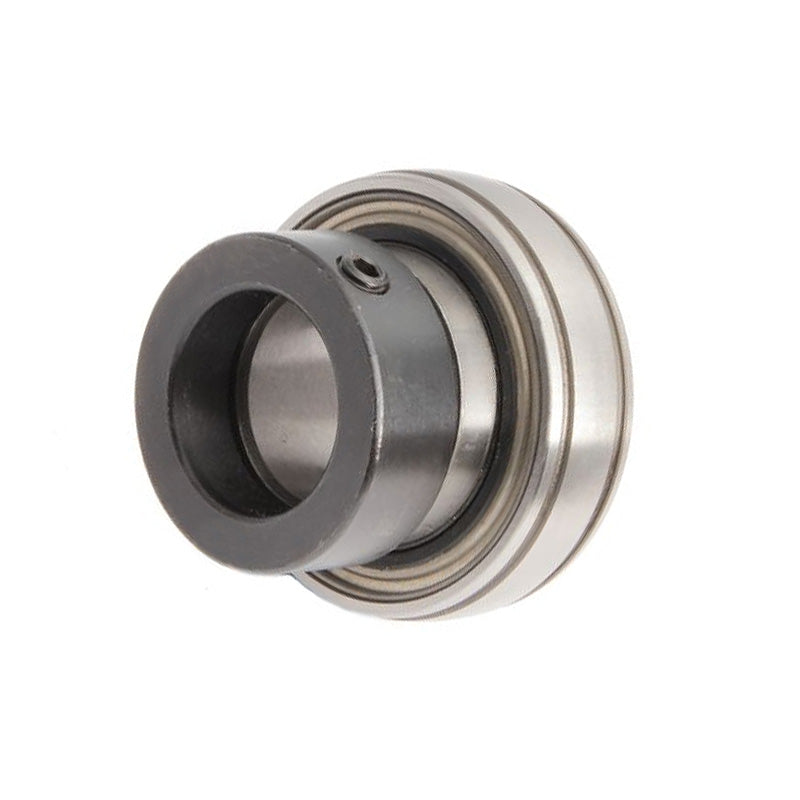

RHP T1045-1-3/4DECG Triple Seal Eccentric Collar Bearing Insert 1-3/4 inch Bore 85mm Outside Diameter
RHP T1045-1-3/4DECG Triple Seal Eccentric Collar Bearing Insert 1-3/4 inch Bore 85mm Outside Diameter
Regular price
$104.28
ex VAT
Regular price
Sale price
$104.28
ex VAT
In stock
Price Break
10+
$69.85
20+
$65.92
30+
$65.14
40+
$64.35
50+
$63.57
75+
$62.78
100+
$58.86
200+
$58.07
250+
$57.29
500+
$56.51
1000+
$54.94
Quantity
Couldn't load pickup availability
Share this product
Description
Description
|
RHP T1000DECG Series Triple Sealed Bearing Insert: This insert type is a full width bearing with a spherical outer diameter and is fitted with a triple seal assembly on both sides of the bearing to prevent moisture and dust / particle ingress, they are particularly suited to agricultural applications where harsh weather conditions and environments need to be tolerated for longer periods between maintenance. They have the benefit of being re-lubricatable after installation. There is an eccentric collar and grub screw to allow easy installation and placement prior of the bearing prior to tightened against to the shaft. Benefits: Cost effective solution, re-lubricatable, eccentric collar fixing, Triple sealed |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 44.45mm = 1.75 (1-3/4) inch
- Outside Diameter:
- 85mm
- Style:
- T1045
Technical
Technical
| Bore | 1-3/4 inch |
|---|---|
| D | 3.3465 inch |
| C | 0.866 inch |
| B3 | 2.218 inch |
| s2 | 0.845 inch |
| d2 | 2.5 inch |
| r | 0.039 inch |
| Dynamic load Cr | 32500 N |
| Static load Cor | 20500 N |
| Rec max speed | 600 rpm |
| Weight | 1.08 kg |
