SKU: TA.202820.Z-EU

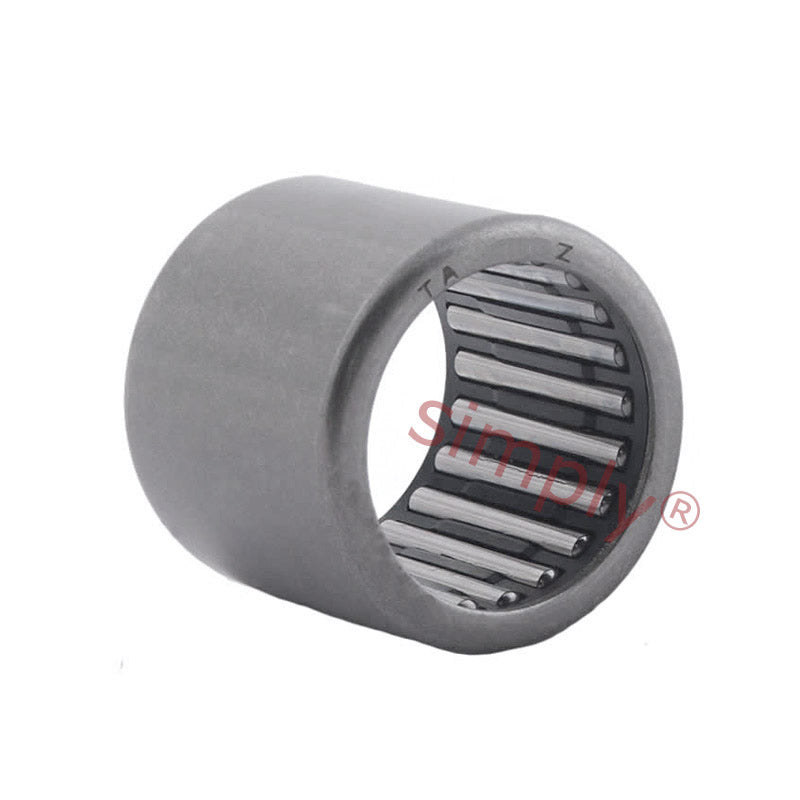

Premier Budget TA202820Z Needle Roller Bearing Open End Type 20x28x20mm
Premier Budget TA202820Z Needle Roller Bearing Open End Type 20x28x20mm
Regular price
$10.95
ex VAT
Regular price
Sale price
$10.95
ex VAT
Equivalent to: HMK202820
In stock
Price Break
10+
$7.33
19+
$6.92
29+
$6.84
39+
$6.76
49+
$6.68
74+
$6.59
99+
$6.18
199+
$6.10
249+
$6.02
499+
$5.93
999+
$5.77
Quantity
Couldn't load pickup availability
Share this product
Description
Description
Premier Quality Budget TA Series Shell Type Drawn Cup Needle Roller Bearings: As the name suggests are needle roller bearings with deep drawn thin-walled outer rings with open ends. They are characterized by low sectional height and high load-carrying ability. They are ideal where a very compact and economical bearing arrangement is required
Benefits: Compact low cross-section design, high load bearing, low cost and economical, Requires only a bored housing for deployment, the simplest of housing designs.
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 20mm
- Outside Diameter:
- 28mm
- Width:
- 20mm
Technical
Technical
| Fw | 20mm |
|---|---|
| D | 28mm |
| C | 20mm |
| Dynamic load | 16900N |
| Static load | 24300N |
| Inner race | IRT1520-2 |
| Weight | 30g |
