SKU: TA.2116.Z

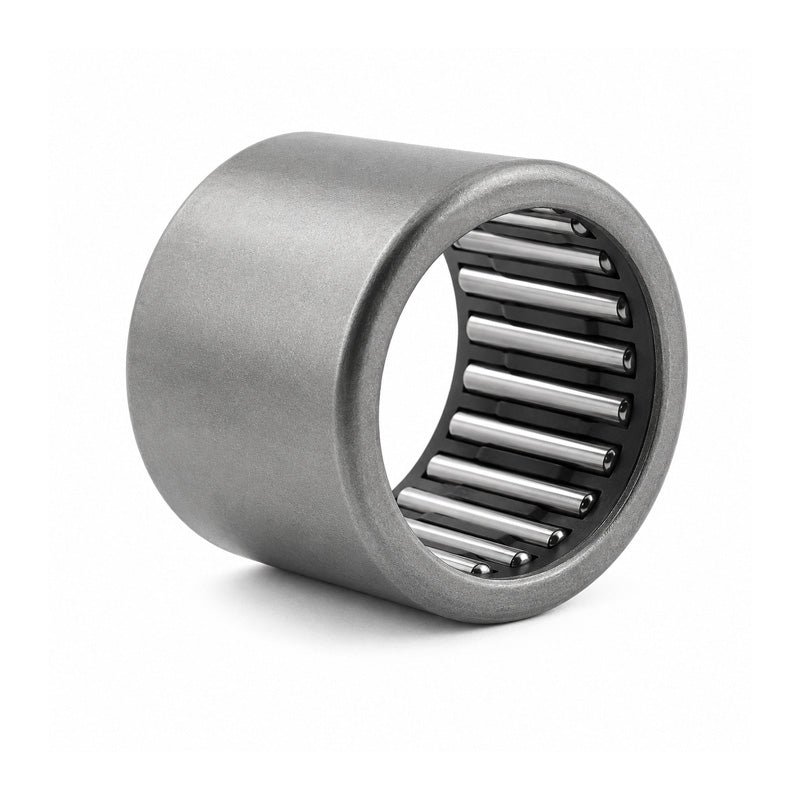

IKO TA2116Z Needle Roller Bearing Open End Type 21x29x16mm
IKO TA2116Z Needle Roller Bearing Open End Type 21x29x16mm
Regular price
$14.91
ex VAT
Regular price
Sale price
$14.91
ex VAT
Equivalent to: HMK2116
In stock
Price Break
10+
$9.99
19+
$9.42
29+
$9.31
39+
$9.20
49+
$9.09
74+
$8.98
99+
$8.42
199+
$8.30
249+
$8.19
499+
$8.08
999+
$7.85
Quantity
Couldn't load pickup availability
Share this product
Description
Description
IKO TA Series Shell Type Drawn Cup Needle Roller Bearings: As the name suggests are needle roller bearings with deep drawn thin-walled outer rings with open ends. They are characterized by low sectional height and high load-carrying ability. They are ideal where a very compact and economical bearing arrangement is required
Benefits: Compact low cross-section design, high load bearing, low cost and economical, Requires only a bored housing for deployment, the simplest of housing designs.
- Brand / Quality:
- IKO - High Quality
- Inside Diameter:
- 21mm
- Outside Diameter:
- 29mm
- Width:
- 16mm
Technical
Technical
| Fw | 21mm |
|---|---|
| D | 29mm |
| C | 16mm |
| Dynamic load | 13300 N |
| Static load | 18100 N |
| Inner race | IRT1716-1 |
| Weight | 25 g |
