SKU: TA.2930.Z-EU

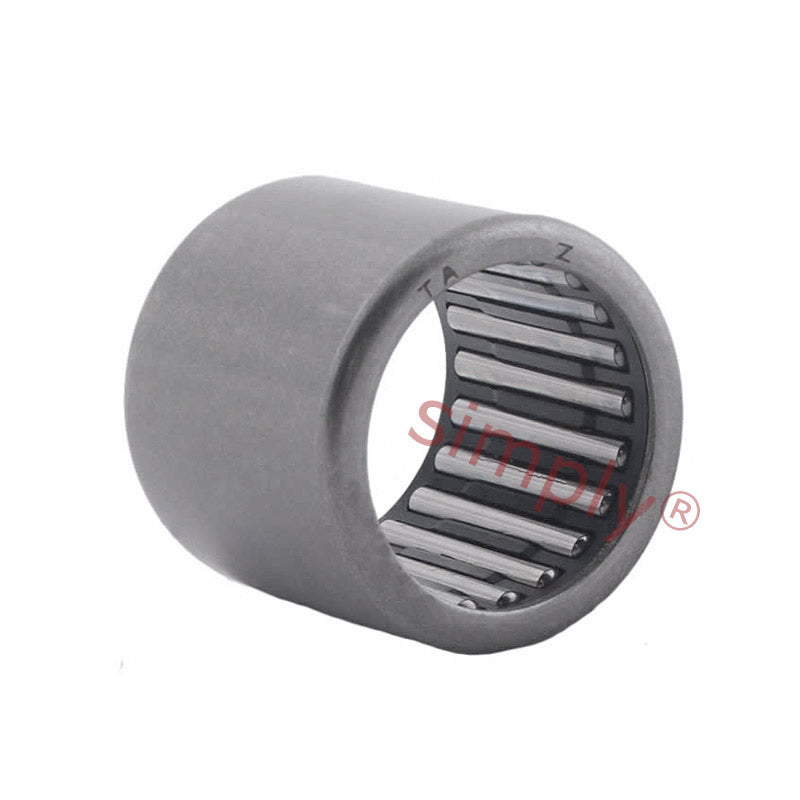

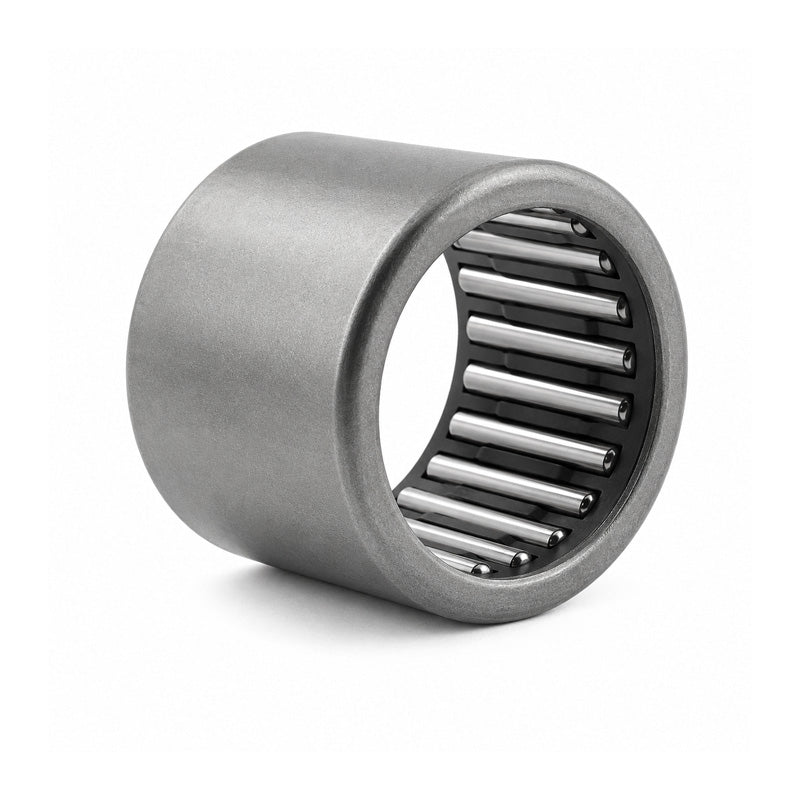

Premier Budget TA2930Z Needle Roller Bearing Open End Type 29x38x30mm
Premier Budget TA2930Z Needle Roller Bearing Open End Type 29x38x30mm
Regular price
$6.10
ex VAT
Regular price
Sale price
$6.10
ex VAT
Equivalent to: HMK2930
In stock
Price Break
10+
$4.09
19+
$3.86
29+
$3.81
39+
$3.76
49+
$3.72
74+
$3.67
99+
$3.44
199+
$3.40
249+
$3.35
499+
$3.30
999+
$3.21
Quantity
Couldn't load pickup availability
Share this product
Description
Description
Premier Quality Budget TA Series Shell Type Drawn Cup Needle Roller Bearings: As the name suggests are needle roller bearings with deep drawn thin-walled outer rings with open ends. They are characterized by low sectional height and high load-carrying ability. They are ideal where a very compact and economical bearing arrangement is required
Benefits: Compact low cross-section design, high load bearing, low cost and economical, Requires only a bored housing for deployment, the simplest of housing designs.
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 29mm
- Outside Diameter:
- 38mm
- Width:
- 30mm
Technical
Technical
| Fw | 29mm |
|---|---|
| D | 38mm |
| C | 30mm |
| Dynamic load | 34200N |
| Static load | 60300N |
| Inner race | IRT2530 |
| Weight | 70g |
