SKU: TA.4530.Z-EU

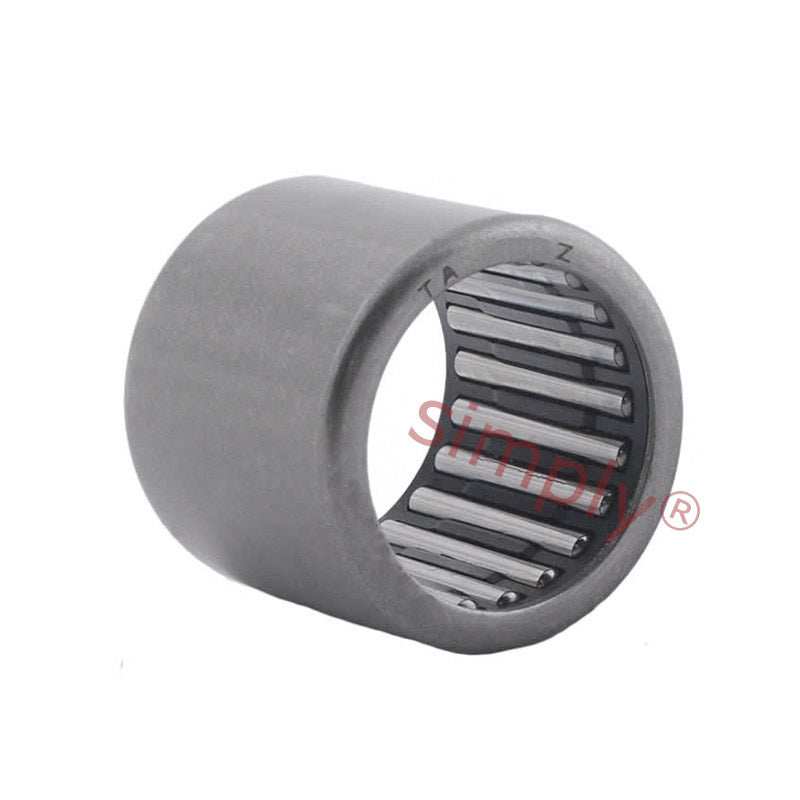

Premier Budget TA4530Z Needle Roller Bearing Open End Type 45x55x30mm
Premier Budget TA4530Z Needle Roller Bearing Open End Type 45x55x30mm
Regular price
$14.12
ex VAT
Regular price
Sale price
$14.12
ex VAT
Equivalent to: HMK4530
In stock
Price Break
10+
$9.46
19+
$8.93
29+
$8.82
39+
$8.71
49+
$8.61
74+
$8.50
99+
$7.97
199+
$7.86
249+
$7.76
499+
$7.65
999+
$7.44
Quantity
Couldn't load pickup availability
Share this product
Description
Description
Premier Quality Budget TA Series Shell Type Drawn Cup Needle Roller Bearings: As the name suggests are needle roller bearings with deep drawn thin-walled outer rings with open ends. They are characterized by low sectional height and high load-carrying ability. They are ideal where a very compact and economical bearing arrangement is required
Benefits: Compact low cross-section design, high load bearing, low cost and economical, Requires only a bored housing for deployment, the simplest of housing designs.
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 45mm
- Outside Diameter:
- 55mm
- Width:
- 30mm
Technical
Technical
| Fw | 45mm |
|---|---|
| D | 55mm |
| C | 30mm |
| Dynamic load | 47700N |
| Static load | 96600N |
| Inner race | IRT4030 |
| Weight | 102g |
