• INA TASE25XLN Cast Iron Plummer Block Housing with Eccentric Collar Insert 25mm Bore
  • INA
1 2

SKU: TASE25-XL-N-INA

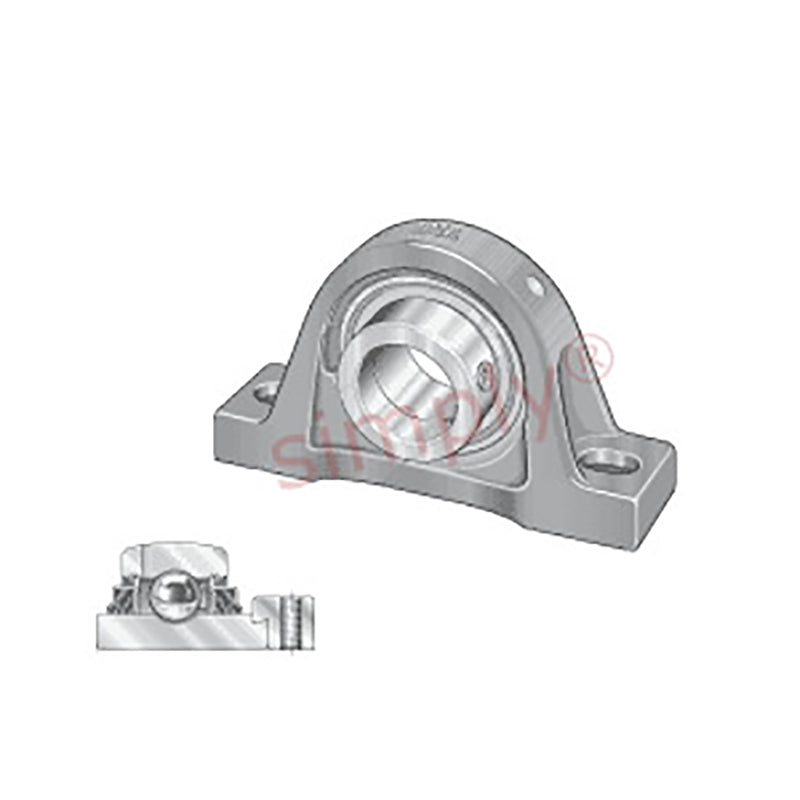

INA TASE25XLN Cast Iron Plummer Block Housing with Eccentric Collar Insert 25mm Bore

INA TASE25XLN Cast Iron Plummer Block Housing with Eccentric Collar Insert 25mm Bore
$62.40 ex VAT
$62.40 ex VAT
Sale Sold out

In stock

Price Break
4+ $41.79
9+ $39.45
19+ $38.98
29+ $38.51
39+ $38.04
49+ $37.57
59+ $35.22
69+ $34.75
79+ $34.28
89+ $33.81
99+ $32.87

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
INA - High Quality
Inside Diameter:
25mm
Style:
TASE
Bolt Hole Centres:
103mm
Technical
d 25mm
L 130mm
H2 70mm
A 36mm
A1 21mm
B1 44.5mm37.5mm
H 36.5mm
H1 14.5mm
J 103mm
N 11mm
N1 19mm
Q M6
S1 27mm
Mass 0.75 kg
Basic dynamic load rating Cr 14900 N
Basic static load rating Cor 7800 N
Designation of housing ASE05
Designation of bearing GE25-XL-KTT-B
Bearing end cap, closed design (to be ordered separately) KASK05
