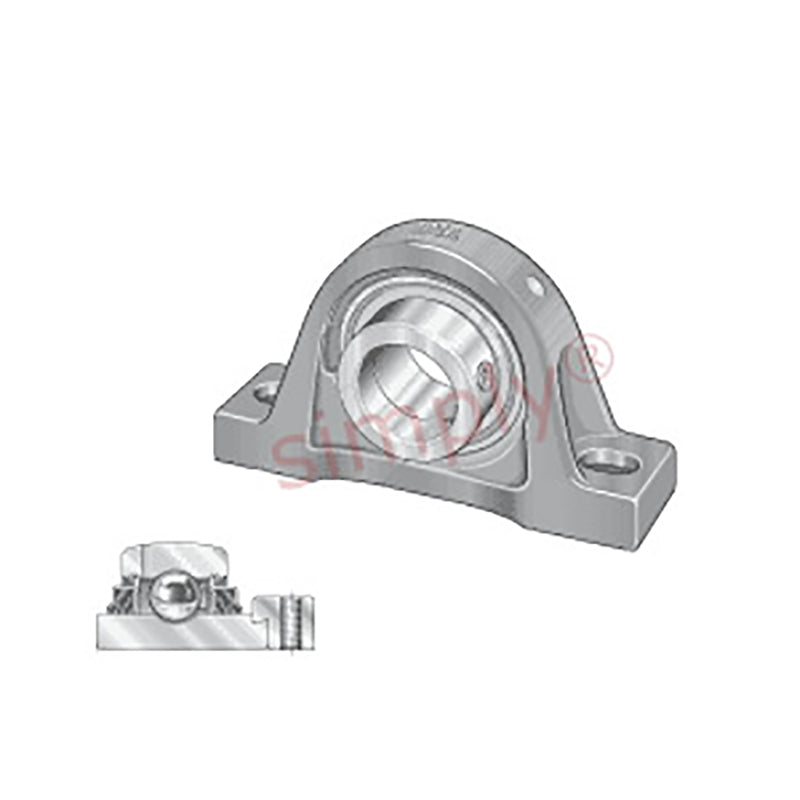

• INA TASE30XLN Cast Iron Plummer Block Housing with Eccentric Collar Insert 30mm Bore
  • INA
1 2

SKU: TASE30-XL-N-INA

INA TASE30XLN Cast Iron Plummer Block Housing with Eccentric Collar Insert 30mm Bore

INA TASE30XLN Cast Iron Plummer Block Housing with Eccentric Collar Insert 30mm Bore
$75.50 ex VAT
$75.50 ex VAT
Sale Sold out

In stock

Price Break
4+ $50.57
9+ $47.73
19+ $47.16
29+ $46.59
39+ $46.02
49+ $45.46
59+ $42.62
69+ $42.05
79+ $41.48
89+ $40.91
99+ $39.77

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
INA - High Quality
Inside Diameter:
30mm
Style:
TASE
Bolt Hole Centres:
118mm
Technical
d 30mm
L 158mm
H2 82mm
A 40mm
A1 25mm
B1 48.5mm44mm
H 42.9mm
H1 17mm
J 118mm
N 14mm
N1 22mm
Q M6
S1 30.2mm
Mass 1.2 kg
Basic dynamic load rating Cr 20700 N
Basic static load rating Cor 11300 N
Designation of housing ASE06
Designation of bearing GE30-XL-KTT-B
Bearing end cap, closed design (to be ordered separately) KASK06
