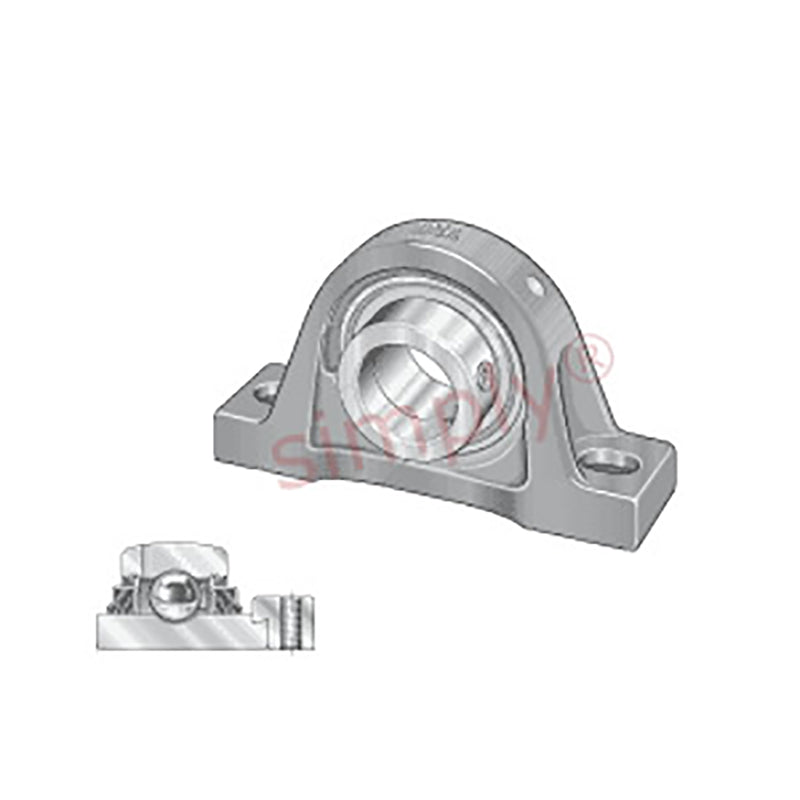

• INA TASE40XLN Cast Iron Plummer Block Housing with Eccentric Collar Insert 40mm Bore
  • INA
1 2

SKU: TASE40-XL-N-INA

INA TASE40XLN Cast Iron Plummer Block Housing with Eccentric Collar Insert 40mm Bore

INA TASE40XLN Cast Iron Plummer Block Housing with Eccentric Collar Insert 40mm Bore
$101.15 ex VAT
$101.15 ex VAT
Sale Sold out

In stock

Price Break
4+ $67.76
9+ $63.95
19+ $63.19
29+ $62.43
39+ $61.67
49+ $60.90
59+ $57.10
69+ $56.34
79+ $55.57
89+ $54.81
99+ $53.29

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
INA Plummer Block Housing Units: Supplied with a fully sealed bearing insert fitted in the housing with an eccentric locking collar. This cast iron housing is a single-piece unit with a high load carrying capacity and features a lubrication groove to facilitate relubrication of the bearing insert. This plummer block housing has a long base and is screw mounted to the adjacent construction by means of slots. Due to the spherical outside surface of the bearing outer ring and the concave housing bore, the unit can compensate for static angular misalignment of the shaft of up to 5 degrees if relubrication is not carried out and 2.5 degrees if relubrication is carried out.
Benefits: High load carrying capacity, re-lubricatable, eccentric collar, tolerates misalignment of the shaft.
Brand / Quality:
INA - High Quality
Inside Diameter:
40mm
Style:
TASE
Bolt Hole Centres:
138mm
Technical
d 40mm
L 179mm
H2 99mm
A 48mm
A1 30mm
B1 56.5mm58mm
H 49.2mm
H1 19mm
J 138mm
N 14mm
N1 26mm
Q M6
S1 35.1mm
Mass 1.96 kg
Basic dynamic load rating Cr 34500 N
Basic static load rating Cor 19800 N
Designation of housing ASE/AK08
Designation of bearing GE40-XL-KTT-B
Bearing end cap, closed design (to be ordered separately) KASK08
